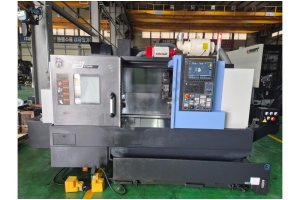

10 İnç Doosan GT2600 CNC Torna tezgahı-2021
10 İnç Doosan GT2600 CNC Torna tezgahı-2021
Yılı: 2021
Fiyat EXW'dir.
Teknik özellikleri
10 inç

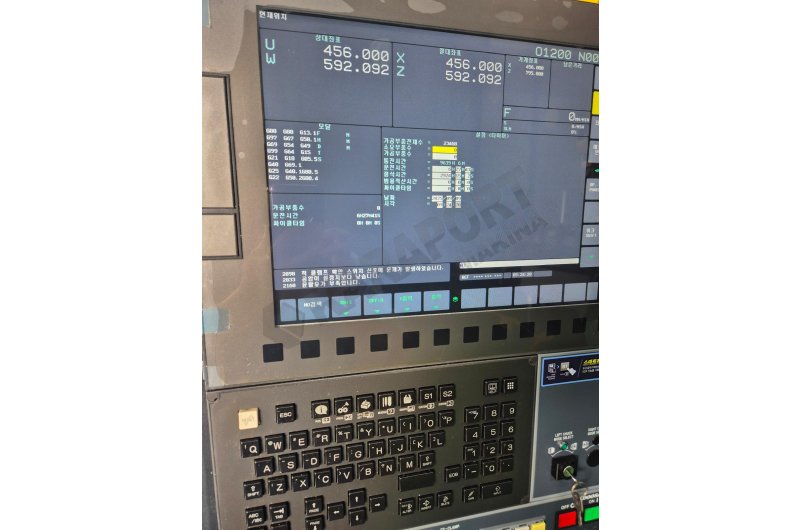

Kontrol Ünitesi: Fanuc i Plus
Yatak Üzeri Çevirme: 630 mm
Araba Üzeri Çevirme: 460 mm
Maks. Tornalama Çapı: 410 mm
Maks. Tornalama Boyu: 658 mm
X Eksen Seyir Mesafesi: 265 mm
Z Eksen Seyir Mesafesi : 1.625 mm
Maksimum Mil Hızı : 3.500 dev/dak
Mil Gücü : 22 kW
Mil Torku : 734 Nm
Hızlı Seyir Hızı:
X Eksen: 24 m/dak
Z Eksen: 30 m/dak

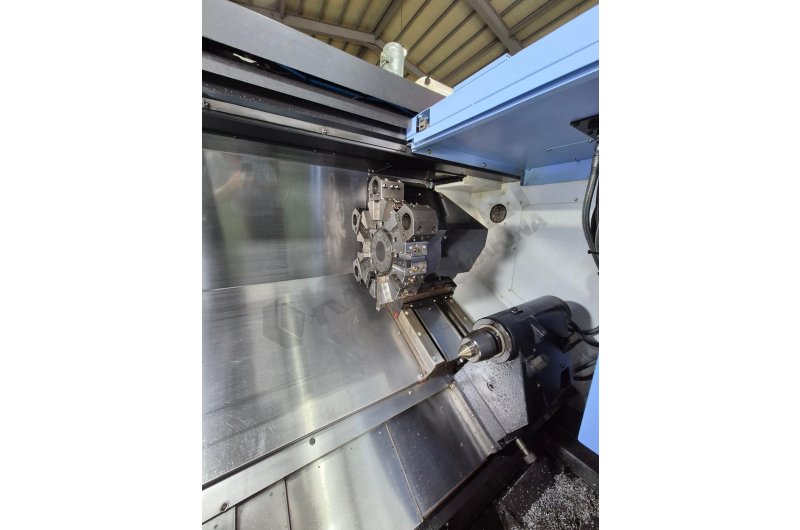

Takım İstasyonu Sayısı: 10
Soğutma Sistemi : Var
Parça Taşıyıcı
Konveyörü
Ağırlık: Yaklaşık 5.900 kg
Boyutlar (L × W × H): 4.855 × 2.030 × 2.198 mm
