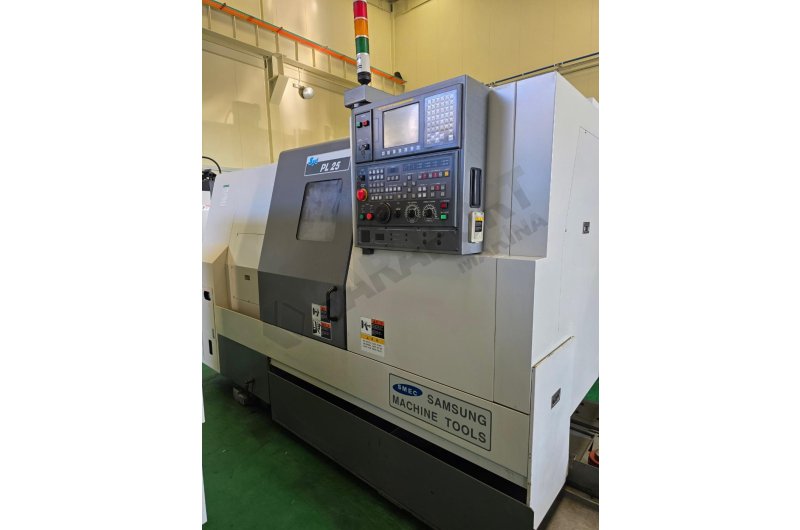

10 inç Samsung PL-25A-500 CNC Torna Tezgahı–2011
10 inç Samsung PL-25A-500 CNC Torna Tezgahı–2011
Yılı : 2011
Makine Kore’dedir. Fiyat EXW
Teknik özellikleri

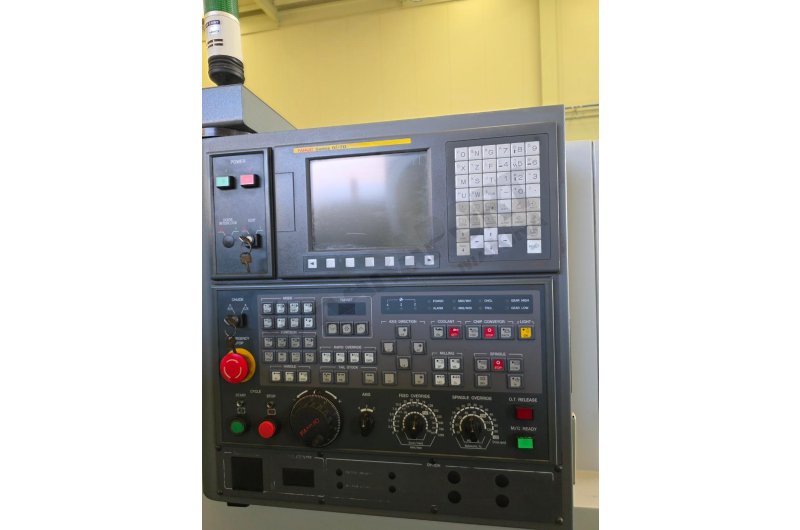

Kontrol Ünitesi Fanuc Oi – TD
Çevirme Çapı mm 520
Maksimum İşleme Çapı mm 380
Maksimum İşleme Boyu mm 530
Fener Mili Çapı mm 77
Fener Mili Devri rpm 3.500
Fener Mili Motoru kW 22/18,5
Ayna Ebatı inch 10
Eksen Hızları (X/Z) m/min 18×24
Eksen Hareketleri (X/Z) mm 220×590

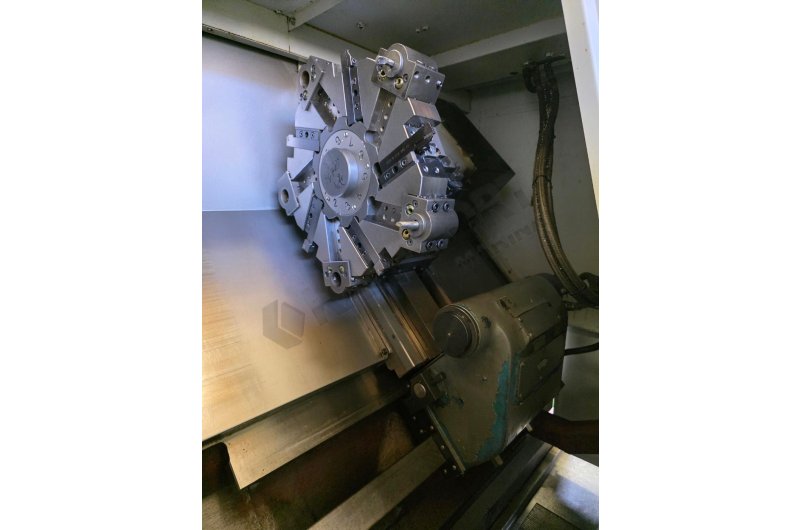

Taret Kalem Sayısı ea 10
Kalem Ebatları mm 25
Delik İçi Kalem Ebatı mm 50
Punta Hareketi mm 80
Makina Ağırlığı kg 5.000
Makina Ebatlar mm 3.066 x 1.681 3.615×1.681
