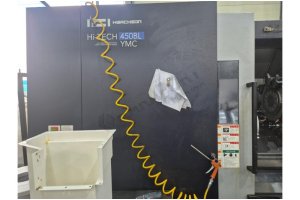

12 inç 1200 Boy Hwacheon Hitec 450 BL-YMC C-Y Eksen CNC Torna
12 inç 1200 Boy Hwacheon Hitec 450 BL-YMC C-Y Eksen CNC Torna -2022
Yıl :2022

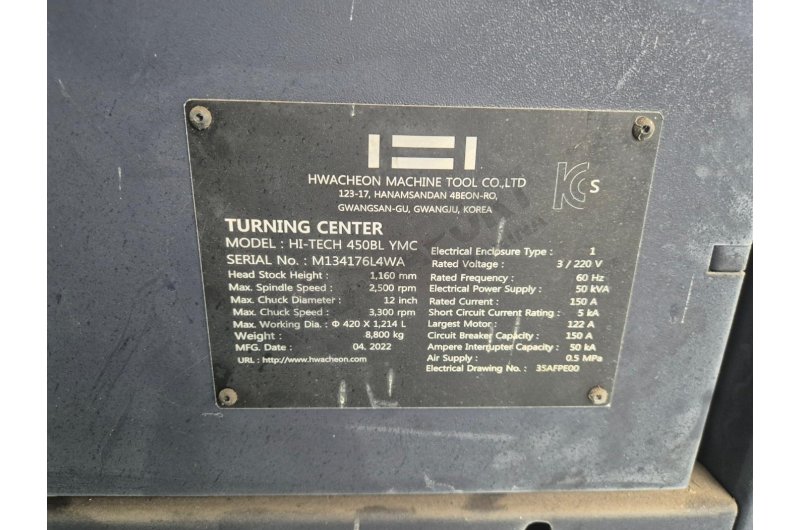

Teknik Özellikleri
• Maksimum Aynalı Çap: 12 inç
• Maksimum Çevirme Çapı : 700 mm
• Maksimum İşleme Çapı: Φ 420 mm
• Maksimum İşleme Uzunluğu: 1.214 mm
• Çubuk Geçiş Çapı : 89 mm
• Başlık Yüksekliği: 1.160 mm
• Maksimum İş Mili Devir Hızı: 2.500 rpm
• Maksimum Ayna Devir Hızı: 3.300 rpm
• Mil Gücü: 22 kW
• Mil Torku: 1050 Nm

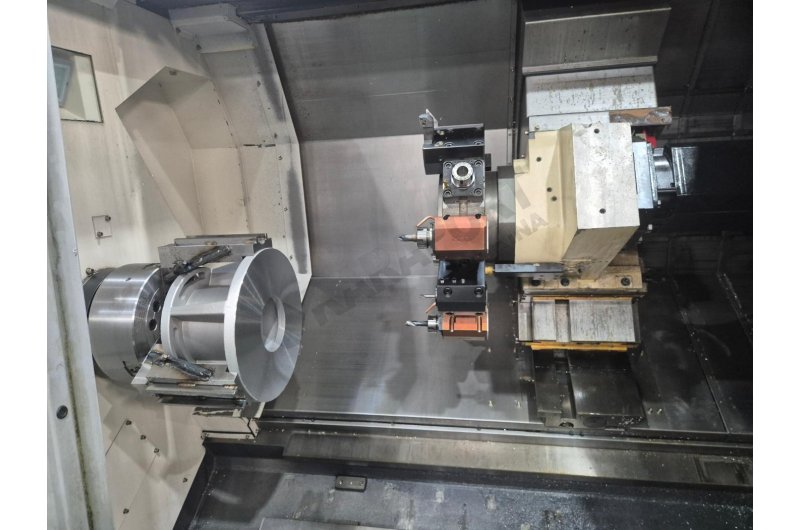

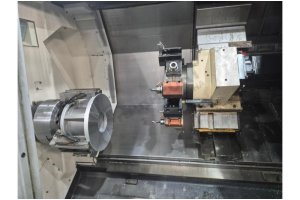

• Taret: 12 istasyon
• Takım Tahriki: 5.000 dev/dak
• Güç: 9,4 kW
• Tork: 90 Nm
• Takım Tutucu: BMT-65 / BH
• X Ekseni Hareket Mesafesi: 280 mm
• Y Ekseni Hareket Mesafesi: 120 mm
• Z Ekseni Hareket Mesafesi: 1.390 mm
• Makine Ağırlığı: 8.800 kg
Donanım

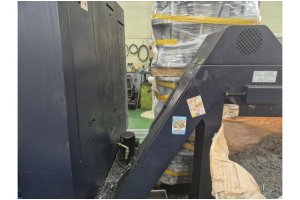

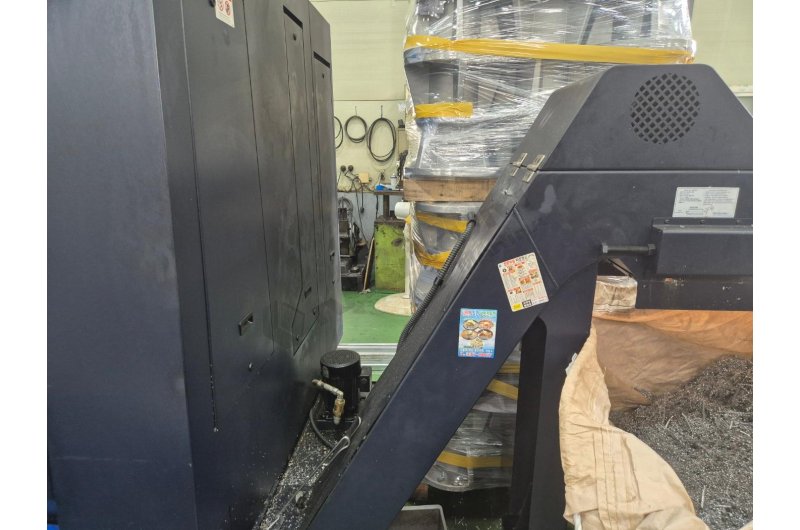

Talaş Konveyörü
Soğutma Sıvısı Kapasitesi: 240 Litre
Takım Ölçme Kolu
Fiyat EXW Kore’dir.
