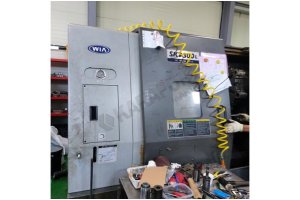

12 inç Hyundai SKT-300L CNC Torna Tezgahı-2008
12 inç Hyundai SKT-300L CNC Torna Tezgahı-2008
Yılı : 2008
Menşei : Kore
Yer : Kore
Fiyat EXW'dir.
• Maksimum Çevirme Çapı : 749 mm
• Maksimum işleme çapı: 559 mm
• Maksimum iş parçası uzunluğu: 1252 mm
• X ekseni hareketi: 355 mm
• Z ekseni hareketi: 1350 mm
• Maksimum çubuk işleme çapı: 90 mm
• Mil delik çapı: 102 mm
• Maksimum devir: 3000 d/d
• X ekseni hızlı hareket: 20 m/dk
• Z ekseni hızlı hareket: 24 m/dk
• Takım ölçüsü (kare): 25.4 mm
• Takım ölçüsü (yuvarlak): 50.8 mm
• İndeksleme süresi (1 istasyon): 0.3 saniye
• Ayna çapı: 305 mm
• Motor gücü: 26 kW
• Tork: 1098 Nm
• Ağırlık: 7200 kg
• Yatak açısı: 45°
• Soğutma sistemi basıncı: 4.3 bar
• Karşı Punta mili hareketi (programlanabilir): 120 mm
