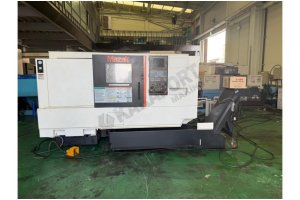

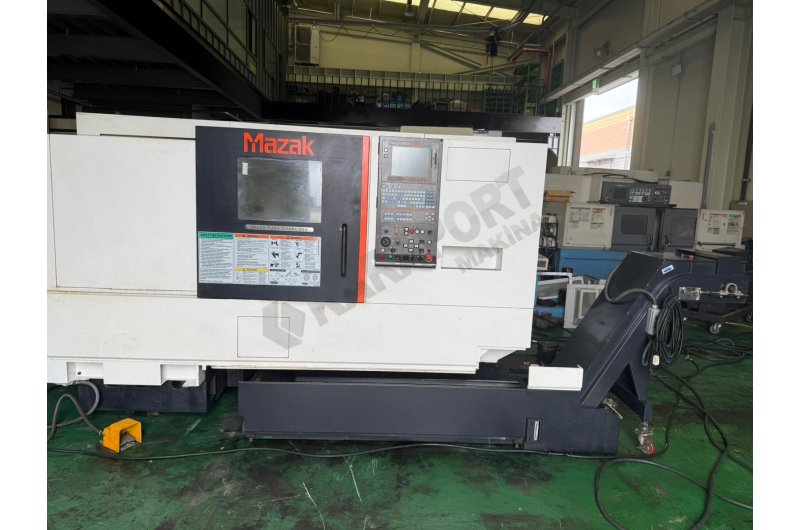

12 inç Mazak Quick Turn Smart 350 CNC Torna Tezgahı–2012
12 inç Mazak Quick Turn Smart 350 CNC Torna Tezgahı–2012
Yılı : 2012
Yer : Kore
Menşei: Japonya
Fiyat EXW'dir.
Teknik özellikleri
Ayna Çapı : 12 inç

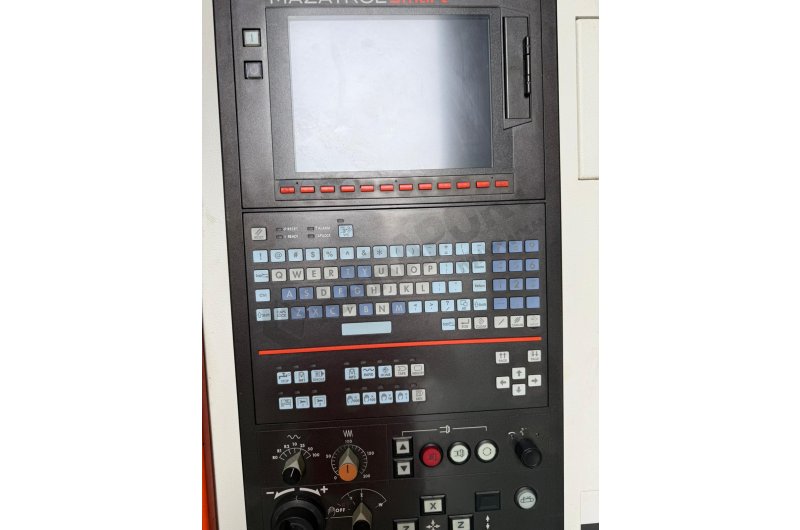

Kontrol Ünitesi: Mazatrol Smart CNC

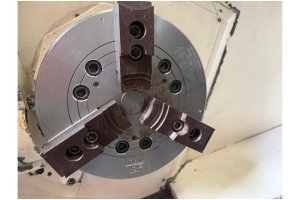

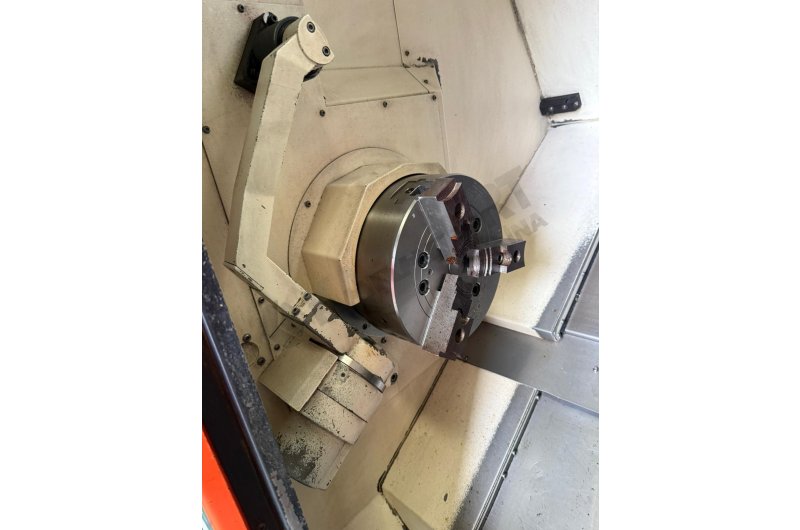

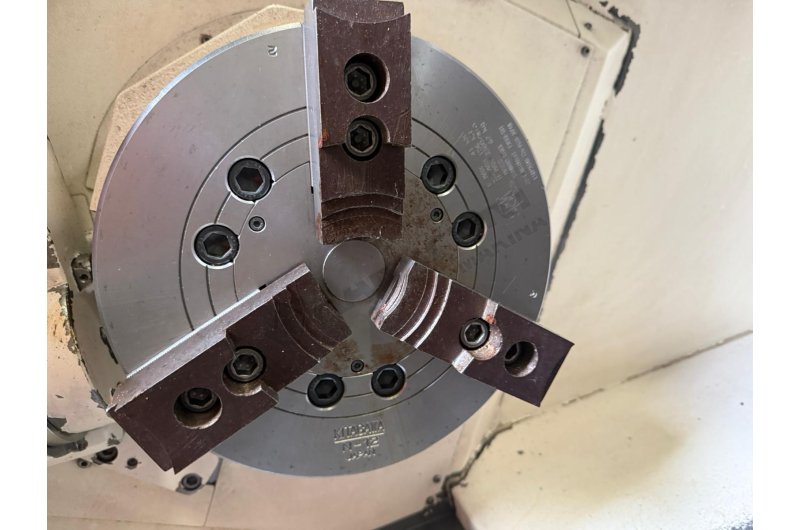

Ayna (Chuck) Çapı: 12 inç (304.8 mm)
Maksimum İşlenebilir Çap: Ø 420 mm
Maksimum hareket (Swing over bed): 720 mm
Bar (Şaft) Geçiş Kapasitesi: Ø 101–102 mm
İş Mili Devir Aralığı: Maks. : 3.300 rpm
İş Mili Gücü: 30 kW (sürekli)
X Eksen Strok: 240 mm
Z Eksen Uzunluğu (Between Centers): ~ 604 mm

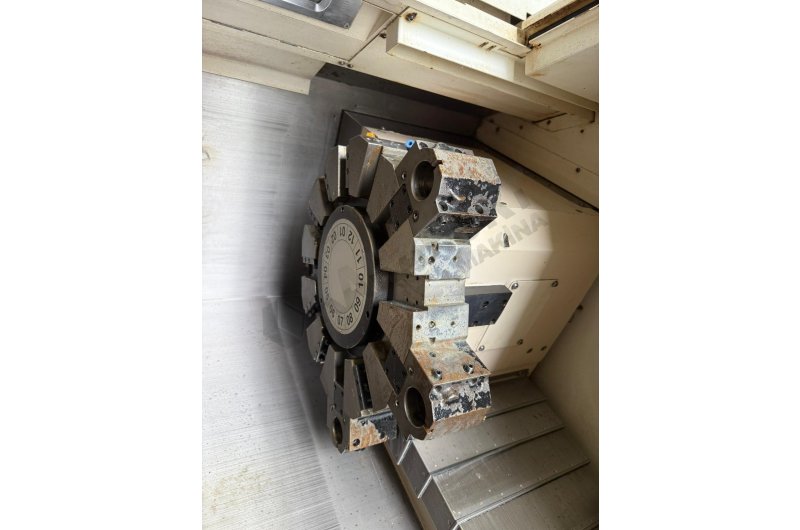

Takım Taret Sayısı: 12 pozisyonlu taret (blok-taret)
Soğutma Sıvısı Deposu Kapasitesi: 320 litre
Makine Ölçüleri (yaklaşık): 3.770 × 1.910 × 1.900 mm
Ağırlık: 6200 kg
