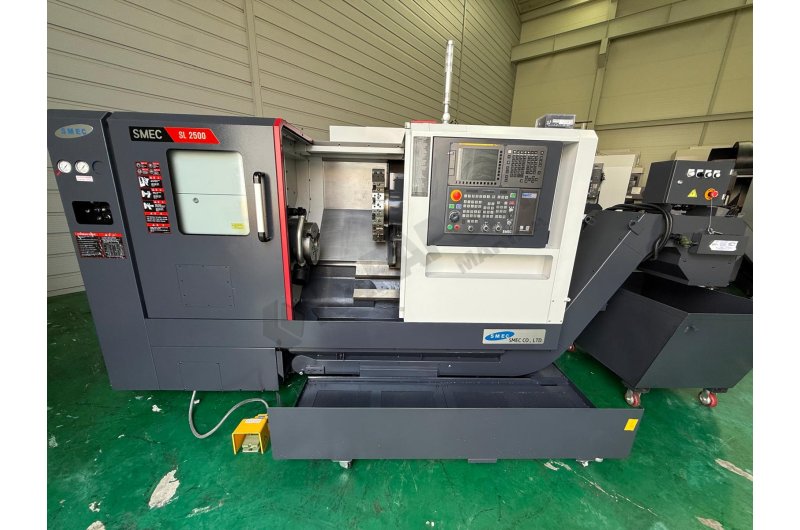

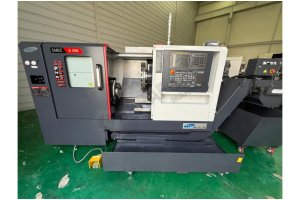

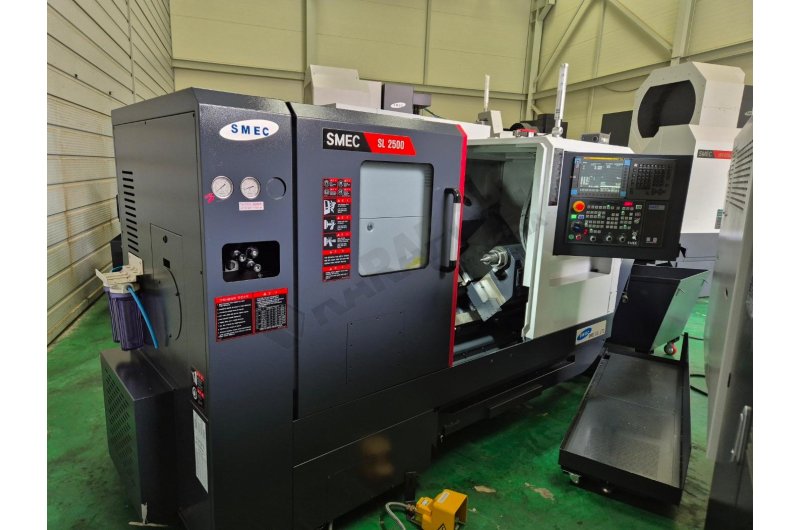

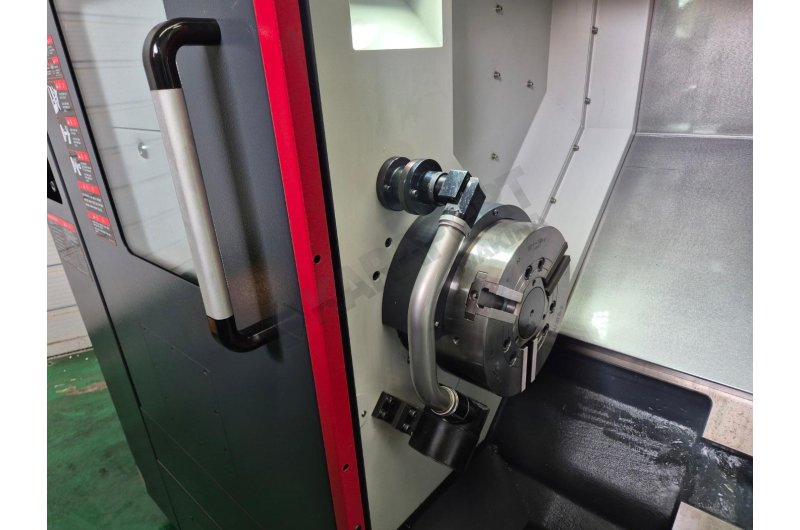

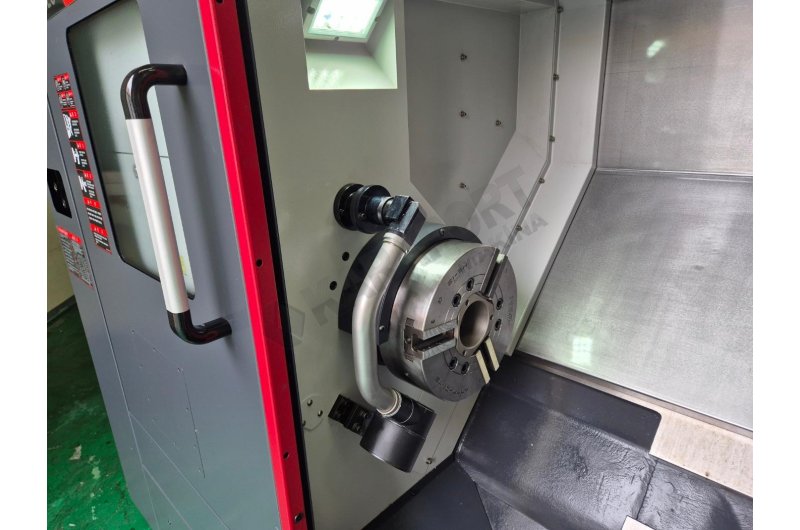

2 Adet 12 inç Smec SL-2500B CNC Torna Tezgahı-2022
2 Adet 12 inç Smec SL-2500B CNC Torna Tezgahı-2022
Yılı:2022
Yer : Kore
Fiyat EXW'dir. Tek Makine Fiyatıdır.
Teknik özellikleri

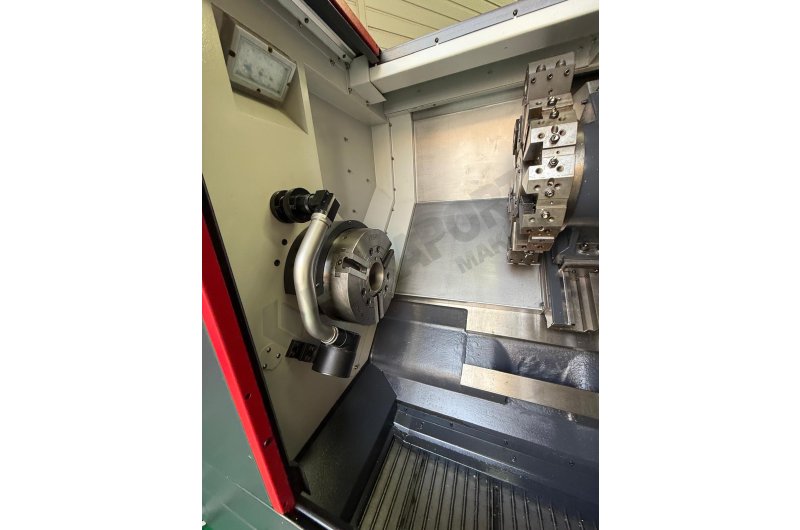

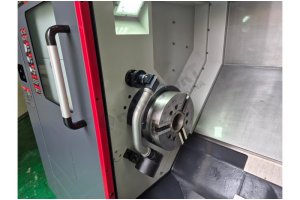

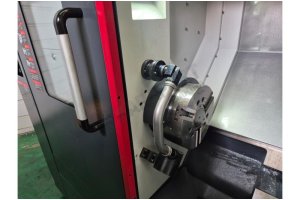

Özel Ayna Çapı : 12 inç (Normalde 10 inç)

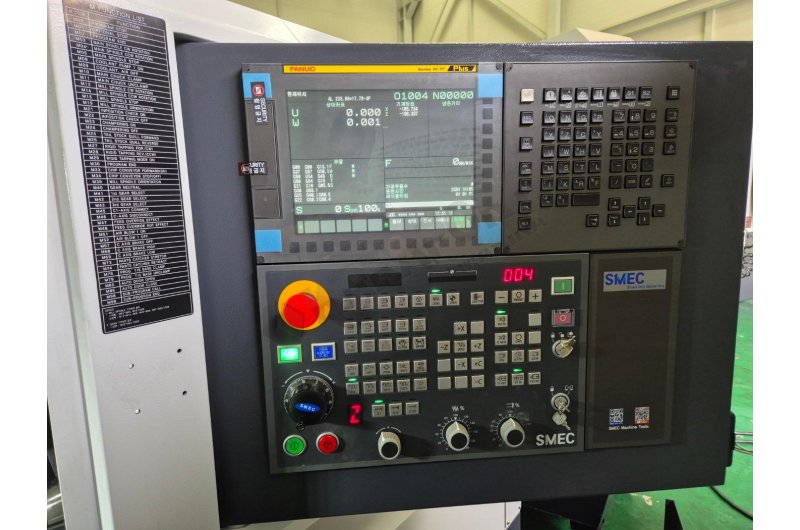

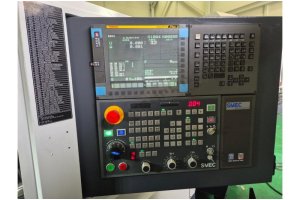

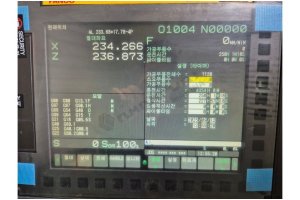

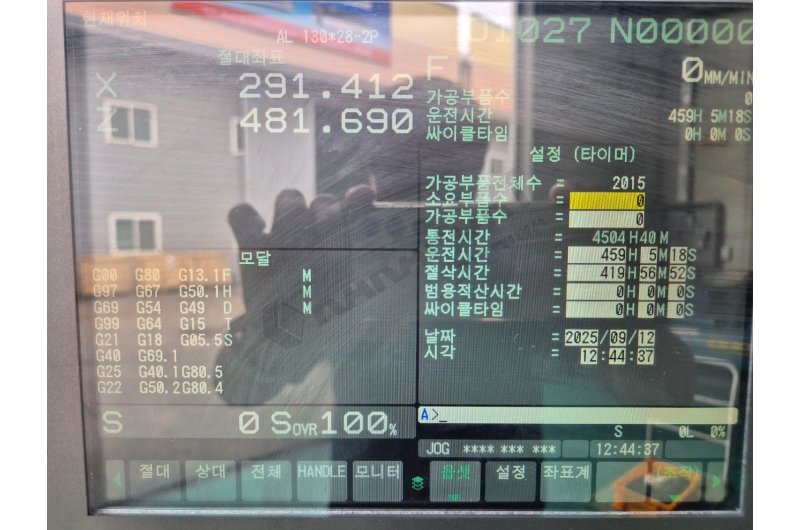

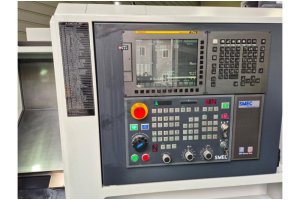

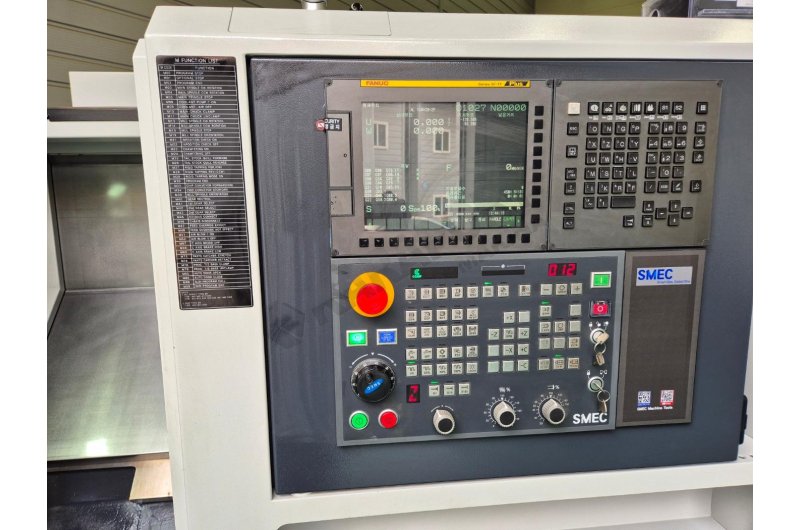

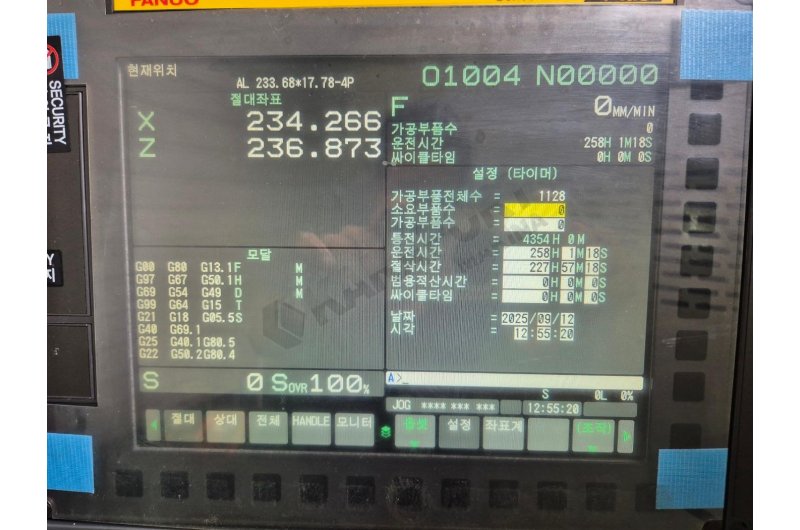

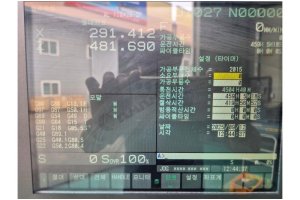

Kontrol Ünitesi : Fanuc Oi-TF
Maks. Çevirme Çapı : Ø650 mm
Maks. Tornalama Çapı : Ø430 mm
Maks. Tornalama Boyu : 554 mm
Çubuk İşleme Kapasitesi : Ø90 mm
İş Mili Rulman Çapı : 130 mm
İş Mili Devri : 3500 rpm
İş Mili Normu : A2-8
İş Mili Motor Gücü : 18,5 kW
X Ekseni Hareketi : 245 mm
Z Ekseni Hareketi : 600 mm
X ve Z Ekseni Motor Gücü : 3/3 kW
Eksen Yapısı : Kutu
X ve Z Eksenleri Seri Hareket Hızları : 24/30 m/dak

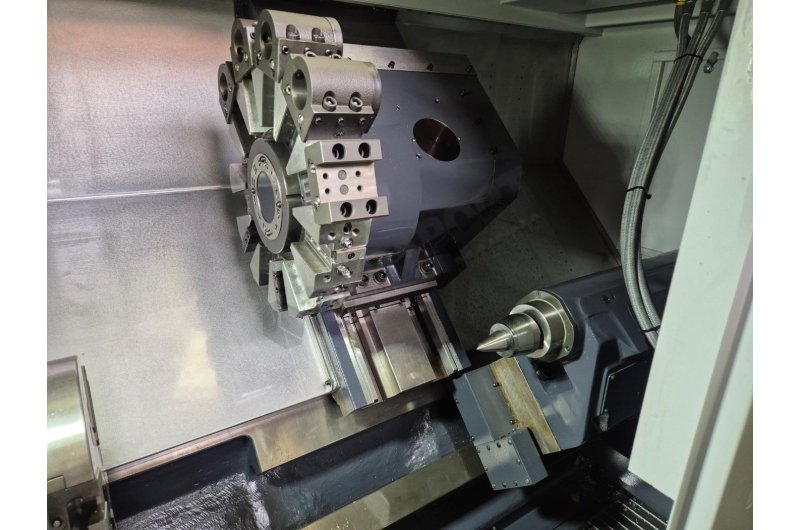

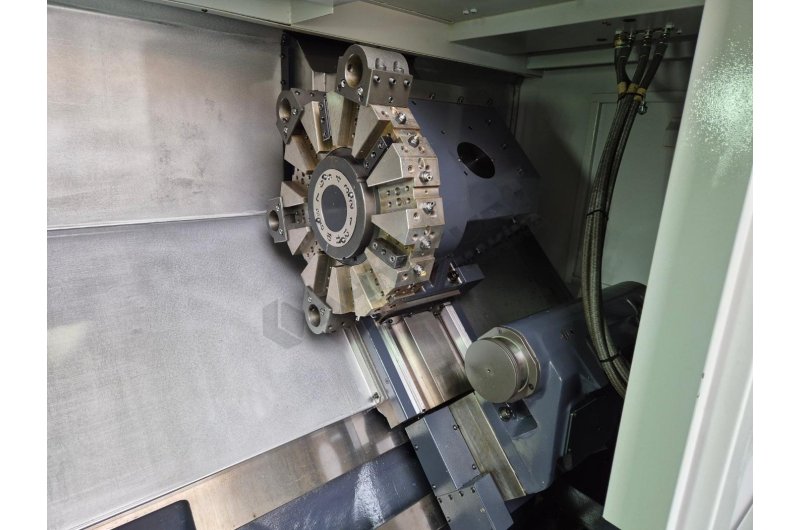

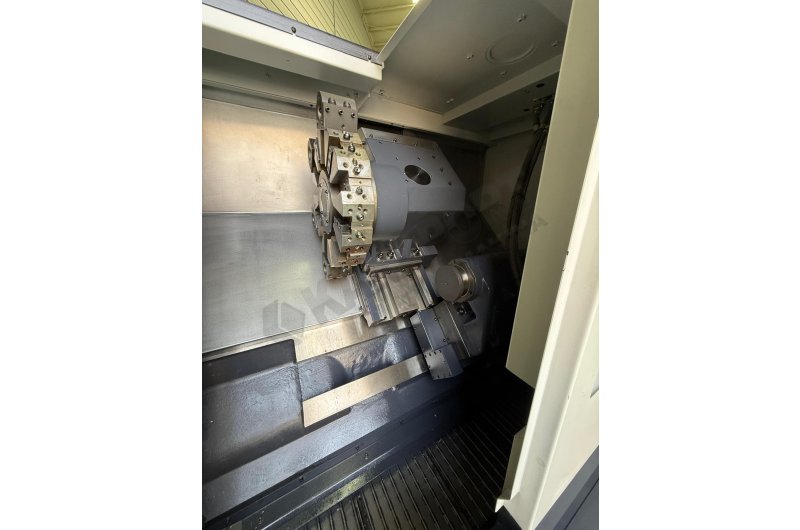

Taret İstasyon Sayısı : 12
Tornalama Kateri Ölçüsü : 25 mm
Delik Kateri Ölçüsü : Ø50 mm
Taret İndeksleme Süresi : 0,2 sn
Punta Pinol Normu : MT5
Punta Pinol Çapı : 110 mm
Punta Pinol/Gövde Hareketi : 100/522 mm
Gerekli Hava İhtiyacı : 6-8 Bar
Gerekli Yerleşim Alanı : 3125 x 1610 x 1937 mm
Konveyör Dahil Yerleşim Alanı : 4230 x 1610 x 1937 mm
Ağırlık : 5100 kg
