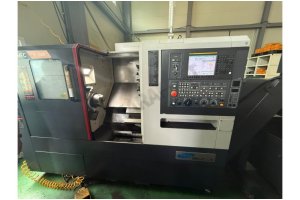

2 Adet Smec SL-2000 CNC Torna Tezgahı-2020

34.900 €
Ad Number 12202
View Count 792
Ad Date 26 August 2025
From 2.El Makina Satıcısı
Year 2020
Ödeme Tipi Nakit
Technical Specifications
Video
PDF
Map

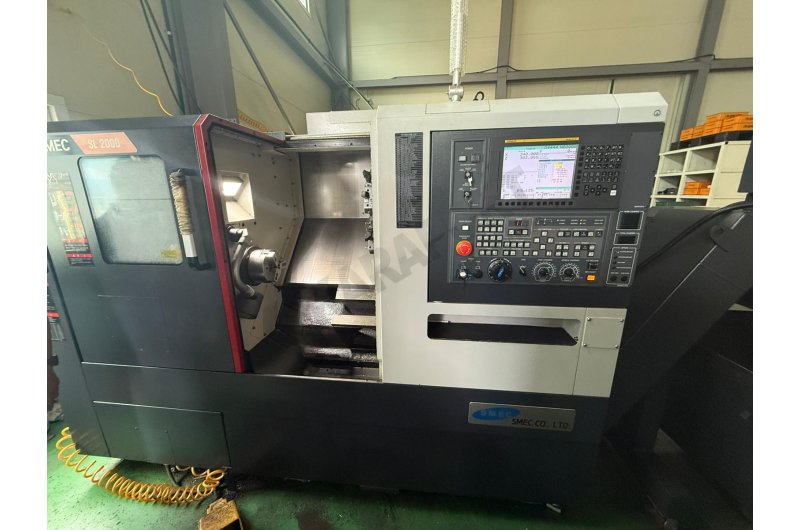

2 Adet Smec SL-2000 CNC Torna Tezgahı-2020

Yılı : 2020

Bulunduğu Yer : Uzakdoğu

Teslim Süresi : 45 gün

Fiyat EXW'dir.

Fiyat adet fiyattır.

Teknik özellikleri

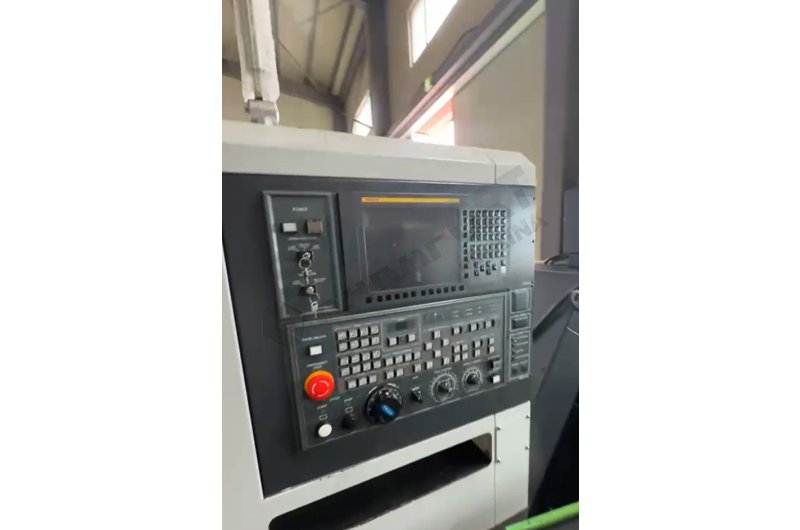

- Kontrol Ünitesi: Fanuc

- Kızak Üstü Çevirme Çapı: 570 mm

- Maksimum İşleme Çapı: 360 mm

- Maksimum İşleme Boyu: 540 mm

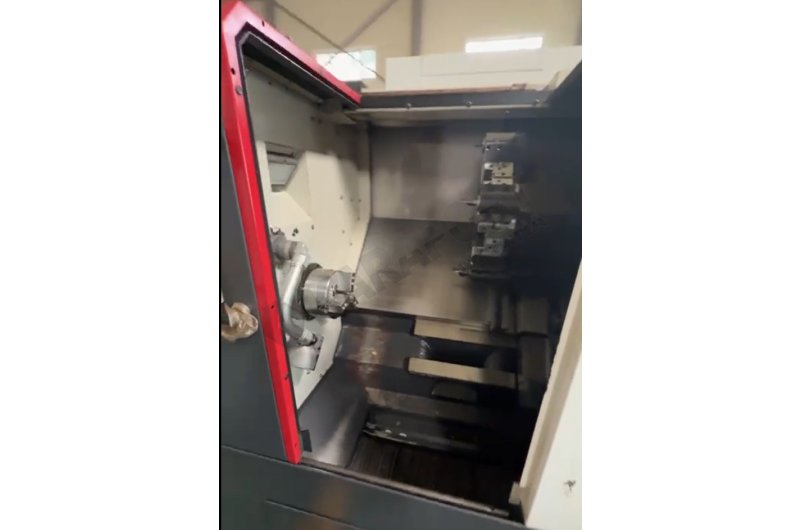

    Ana İş Mili

- Ayna Çapı: 6 inç

- Maksimum Devir: 6000 rpm

- Fener Mili Diş Çapı: 61 mm

- Fener Mili İç Çapı: 52 mm

- Motor Gücü: 11 / 18,5 kW

- Tork: 117,8 Nm

   Eksen Hareketleri

- X / Z Eksen Hareketi: 210 mm / 560 mm

- X / Z Rapid İlerleme: 24 / 30 m/dk

- X / Z Motor Gücü: 1,8 / 3 kW

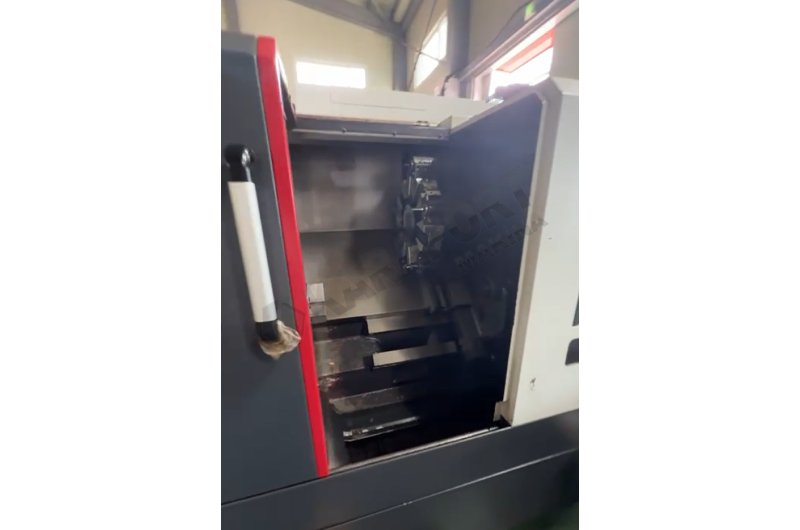

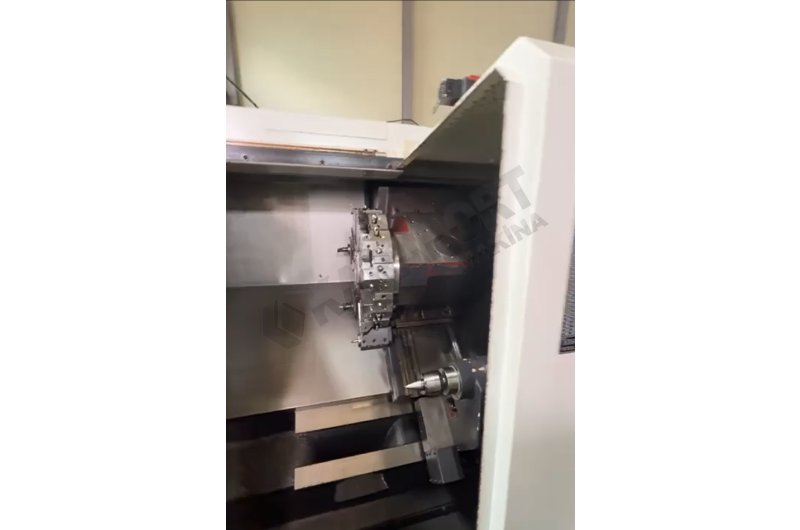

    Taret ve Takım Sistemi

- Takım Sayısı: 12

- İndeksleme Süresi: 0,15 sn

- Kater Tutucu Ölçüsü: 25 mm

- Delik İçi Tutucu Ölçüsü: 40 mm

    Punta

- Pinol Hareketi: 80 mm

- Pinol Çapı: 75 mm

- Koniği: MT4 (Live Center)

   Diğer Özellikler

- Elektrik Besleme: 31 kVA / 220 V

- Yerleşim Alanı: 2643 x 1633 mm

- Makine Ağırlığı: 3700 kg
