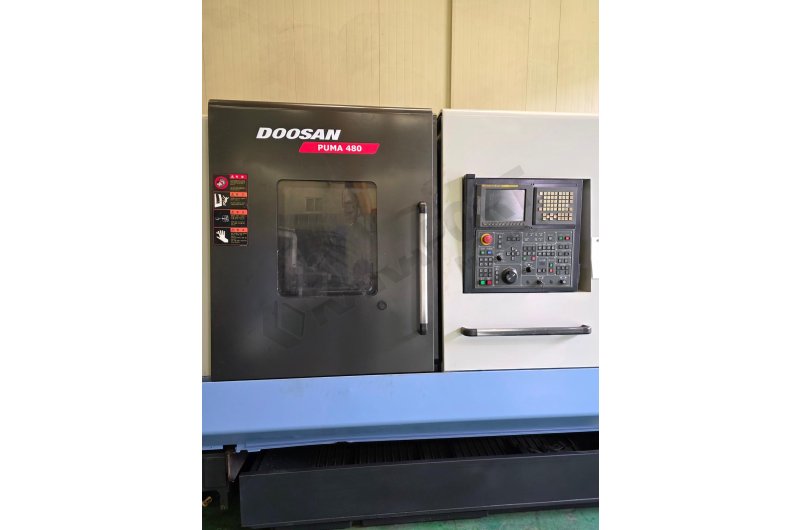

21 İnç Doosan Puma 480 CNC Torna Tezgahı-2009
21 İnç Doosan Puma 480 CNC Torna Tezgahı-2009
Yıl: 2009

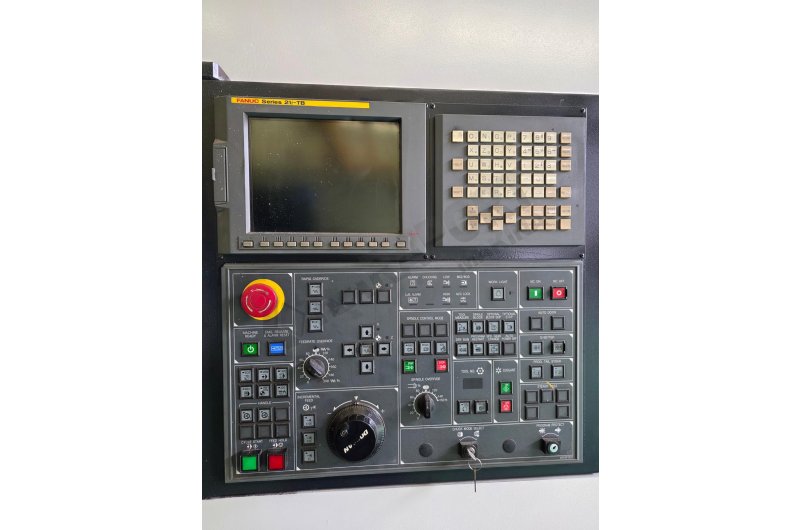

Kontrol Sistemi: Fanuc 32 i
Makine Kore’dedir fiyat EXW fiyattır.
Teknik özellikleri
Torna Kapasitesi
• Çap (Swing Over Bed): 900 mm
• Çap (Cross Slide Üzerinde): 720 mm
• Maksimum Kesme Çapı: 650 mm
• Maksimum Kesme Uzunluğu: 992 mm
• Çubuk Kapasitesi: 165 mm
İş Mili (Spindle)
• İş Mili Deliği: 181 mm
• İş Mili Motor Gücü: 45 kW
• İş Mili Burun Tipi: A1-15
• Maksimum İş Mili Hızı: 1500 rpm
Eksen Hareketleri ve Hızlar
• X Ekseni Hareketi: 362 mm
• Z Ekseni Hareketi: 1105 mm
• Hızlı İlerleme Hızları: XZ: 16 x 20 m/dakika

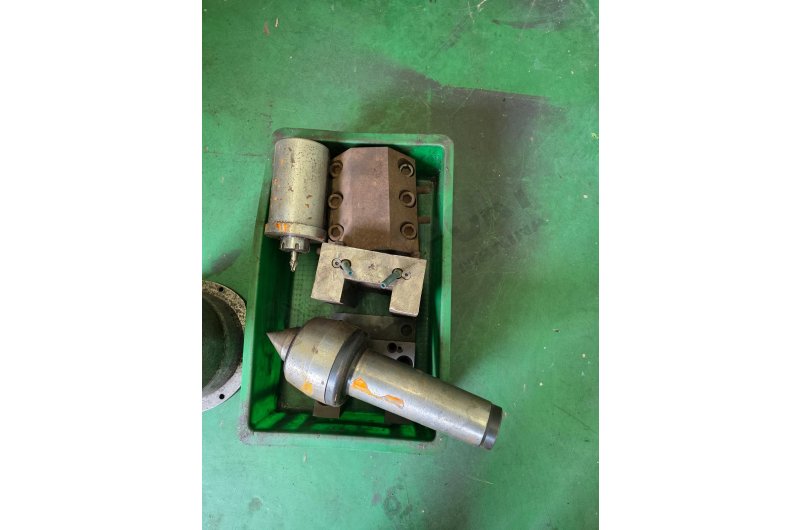

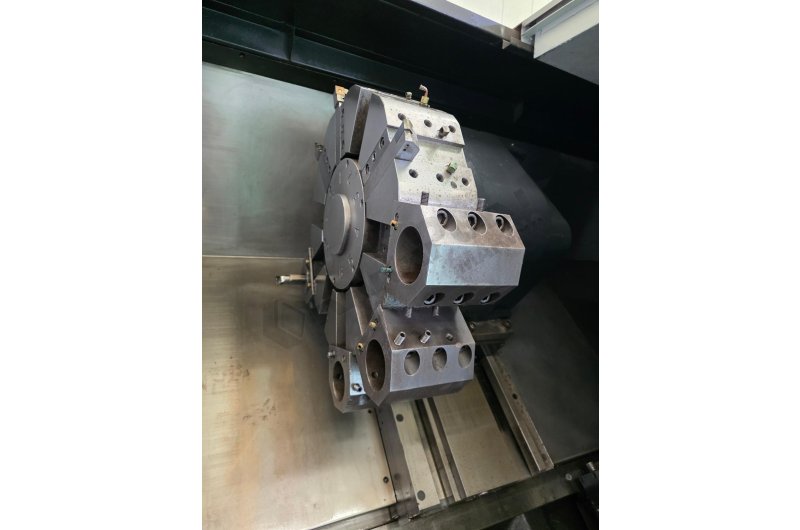

Takım ve Punta
• Takım Boyutu: 32 x 32 mm
• Takım Adedi: 10 İstasyon
• Punta Gövdesi Hareketi: 120 mm
• Punta Konikliği: MT #6
Boyut ve Ağırlık
• Makine Boyutları: 4613 x 2050 x 2197 mm
• Makine Ağırlığı: 10.100 kg
