9 Eksen Tsugami BW209ZJ CNC Kayar Otomat ve Çubuk Sürücüsü-2019
9 Eksen Tsugami BW209ZJ CNC Kayar Otomat ve Çubuk Sürücüsü-2019
Yılı : 2019
Fiyat EXW 'dir.
Teknik özellikleri

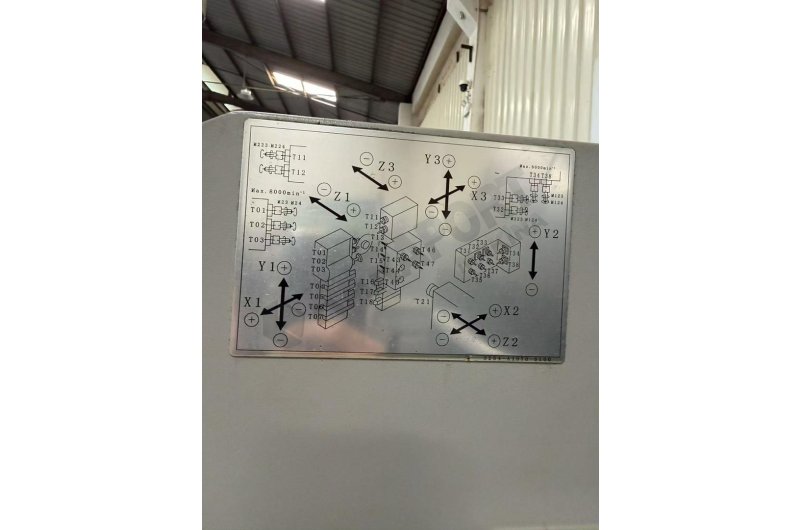

Eksen Sayısı : 9 Eksen
- Maksimum işlenebilir çap: ∮20 mm
- Ana mil hızı: 10.000 rpm
- Arka mil hızı: 12.000 rpm
- Toplam takım sayısı: 28 adet
- Z3 ekseni strok: 60 mm
Hızlı ilerleme hızları
- Z1, Z2, X2: 32 m/dak
- Y1, Y3: 24 m/dak
- Y2: 15 m/dak
- X1, X3, Z3: 12 m/dak
Güç ve Boyutlar
- Ana mil motoru: 2.2 / 3.7 kW
- Boyutlar (G×D×Y): 2.010 × 1.505 × 1.750 mm
- Ağırlık: 2.900 kg
Çubuk Sürücüsü (3 metre boy)
