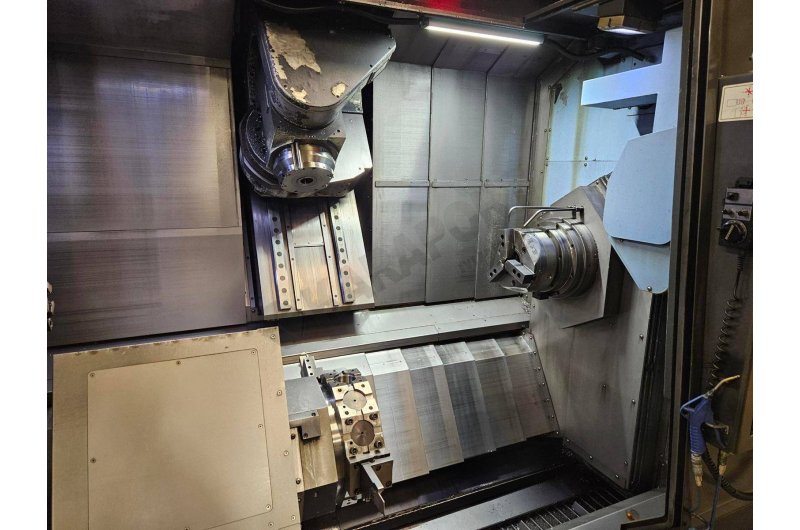

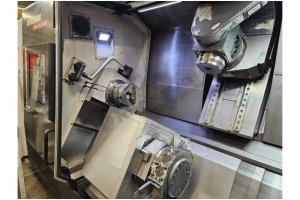

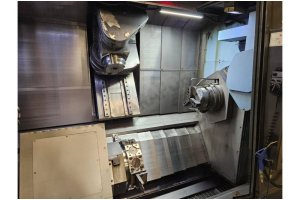

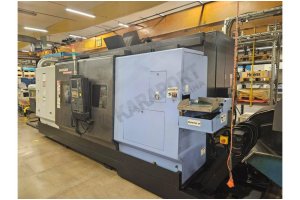

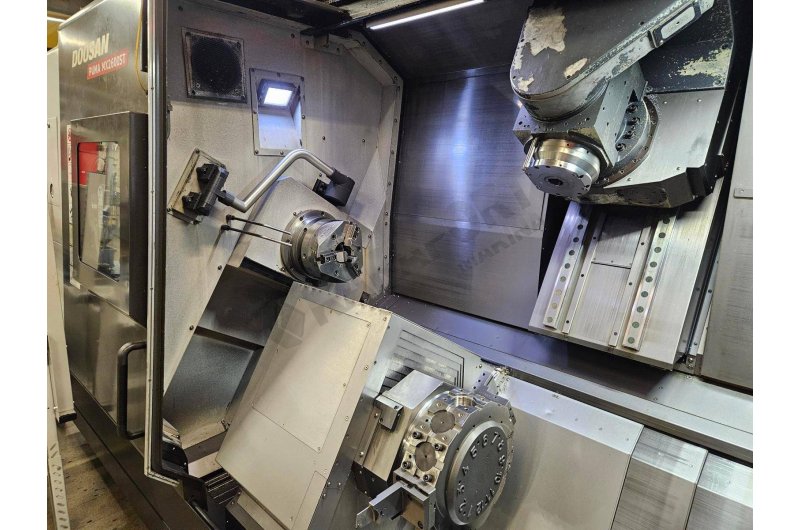

Doosan Puma MX-2600 ST 5 Eksen CNC Tornalama Merkezi-2013
Doosan Puma MX-2600 ST 5 Eksen CNC Tornalama Merkezi-2013
Yılı:2013
Teknik özellikleri

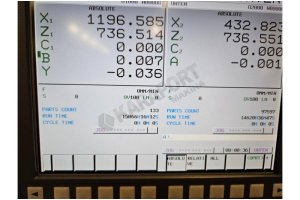

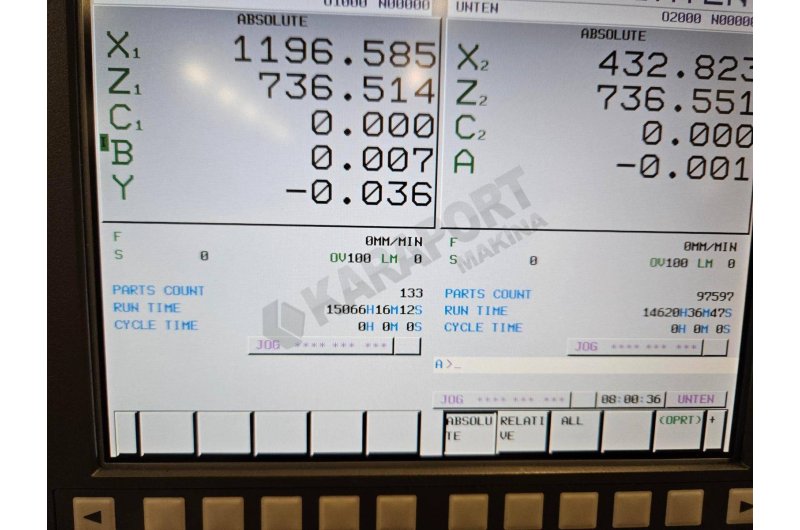

Kontrol ünitesi Fanuc 31 i-A
X Eksen hareketi - 630 mm
Y Eksen hareketi - 230 mm
Z Eksen hareketi - 1585 mm
C ekseni hareketi - 360 (0,001) derece
Maksimum çevirme çapı - 760 mm
İş mili hızları - 4000 rpm
İş mil burnu - A2 - 8
İş mili gücü - 22/26 kW
Maksimum hız freze kafası - 12.000 rpm
Maksimum çubuk çalışma çapı - 76 mm
ATC takım sayısı - 40
Taret takım sayısı -12 adet
İş parçası uzunluğu 1540 mm
- Katlanabilir yatak çapı: Ø 1000 mm
- X2 hareket mesafesi: 220 mm
- Z2 hareket mesafesi: 1515 mm
- A hareket mesafesi: 1550 mm
- Sol/sağ iş mili:
- İş mili konikliği: Capto C6
- Alt taret: 12 istasyon, 4000 rpm, BMT65P
Otomatik takım ölçümü
Talaş konveyörü
