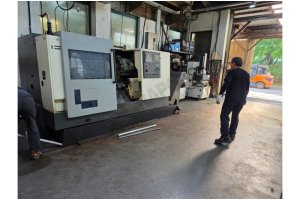

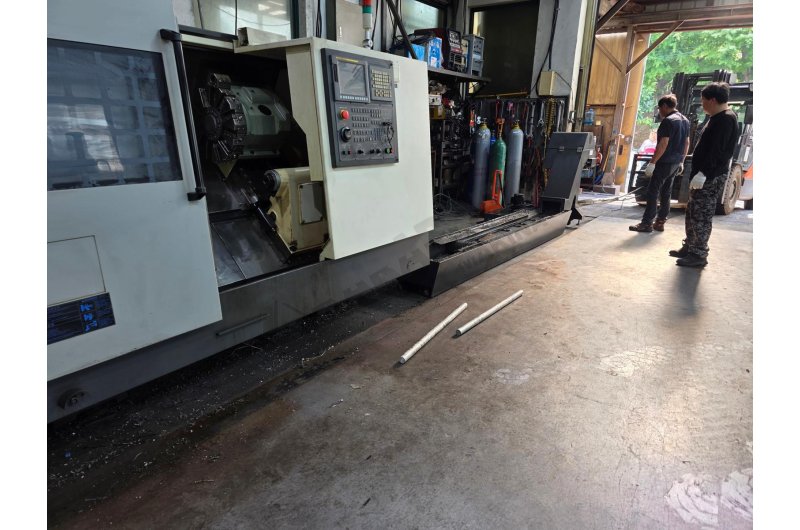

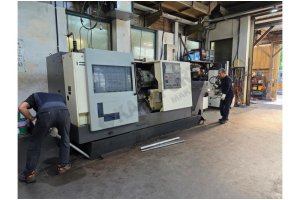

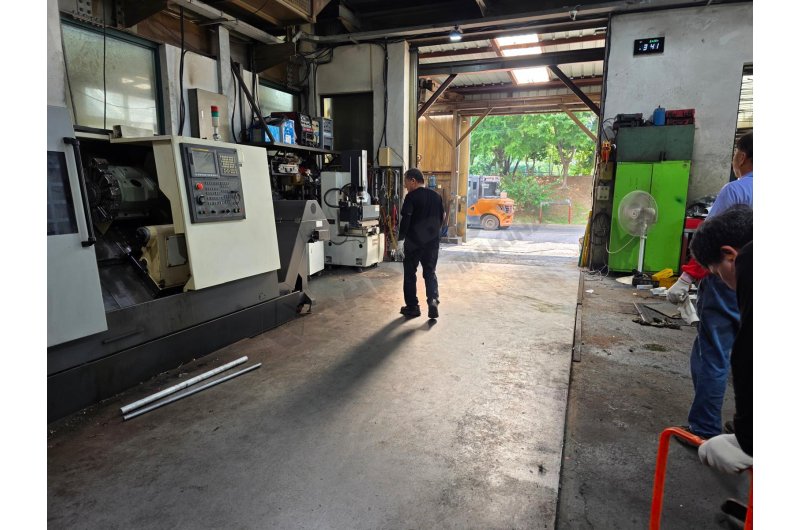

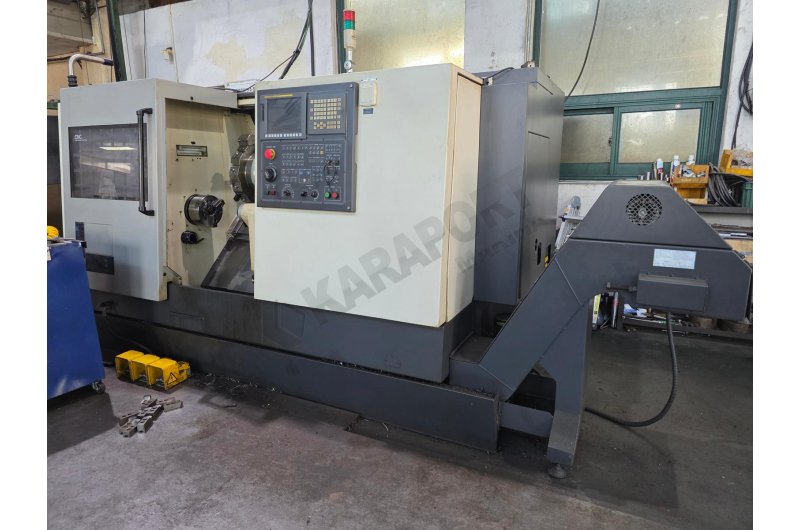

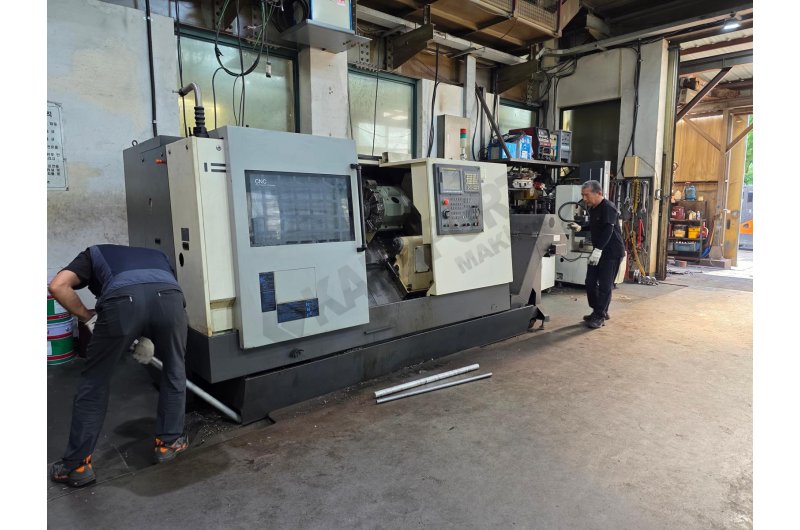

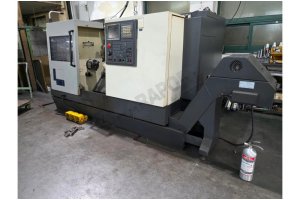

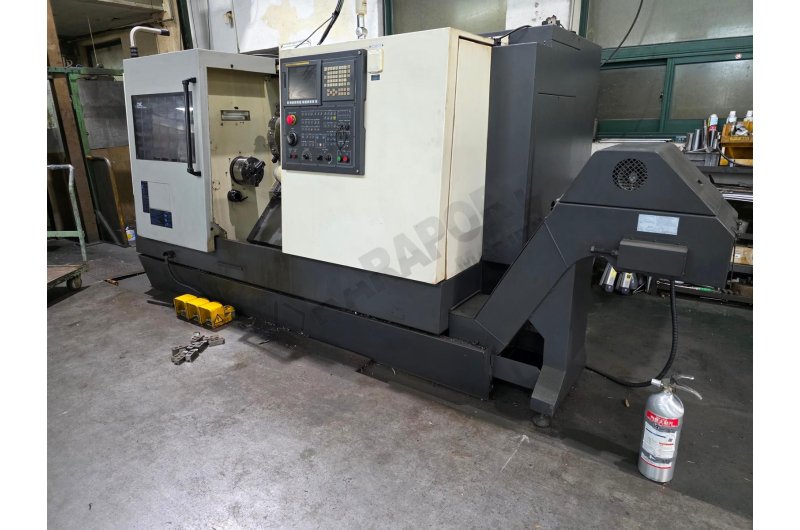

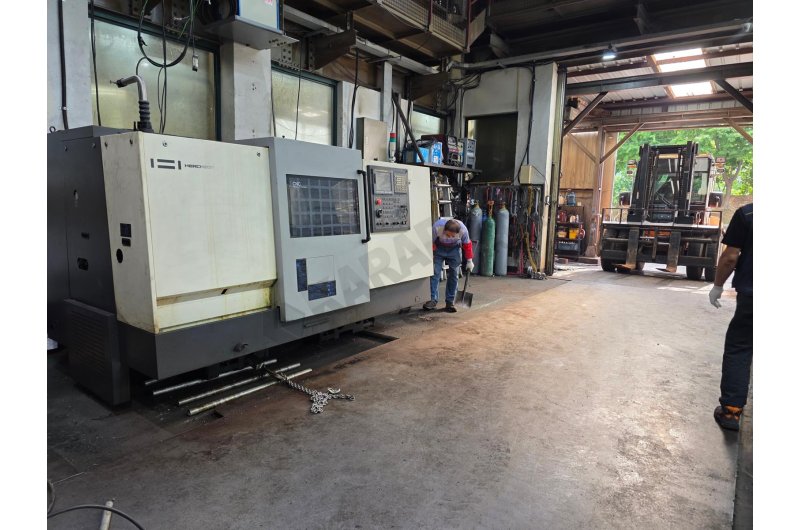

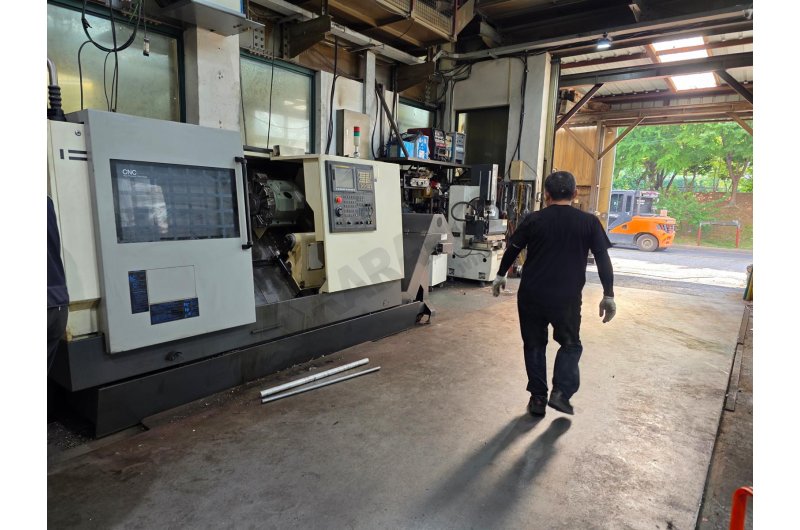

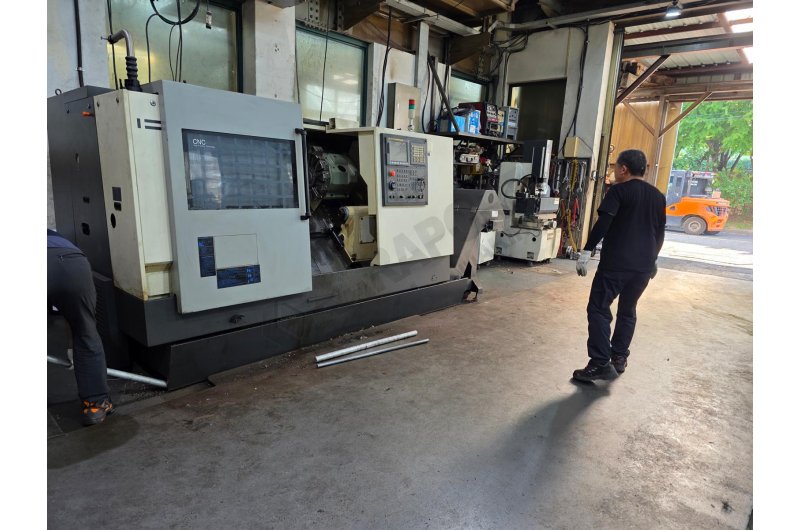

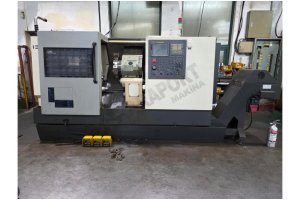

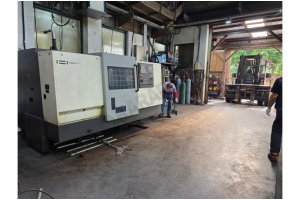

Hwacheon Cutex-240A CNC Torna Tezgahı-2011
Hwacheon Cutex-240A CNC Torna Tezgahı-2011
Yılı : 2011
Menşei: Kore
Teslim süresi : 45 günde teslim
Fiyat EXW'dir.
Teknik özellikleri

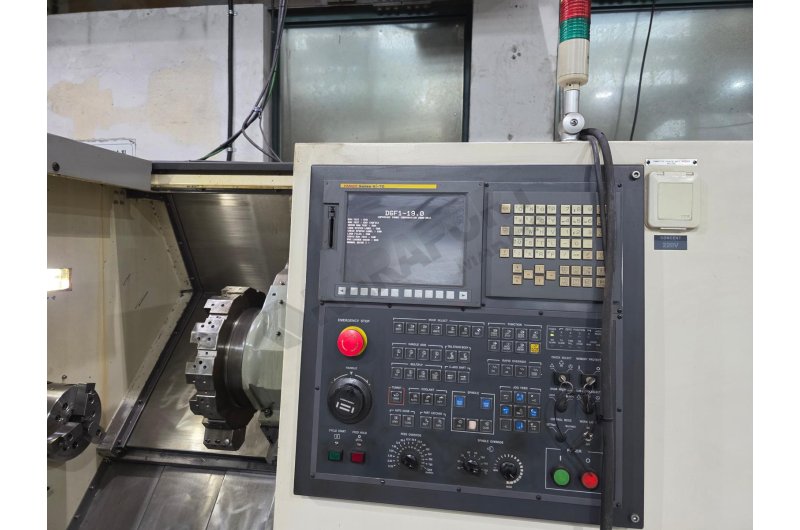

NC Kontrol Ünitesi: • FANUC 0i-TF Plus
Kapasite:
• Yatak üzerinde salınım çapı: Ø580 mm
• Maksimum tornalama çapı: Ø380 mm
• Standart tornalama çapı: Ø212 mm
• Maksimum işleme uzunluğu: 680 mm
• Ana aynanın çapı: 8 inch
İş Mili Özellikleri:
• Mil burun tipi: ASA A2-6
• Maksimum mil devri: 5.000 rpm
• Mil içi delik çapı: Ø75 mm
• Maksimum çubuk çapı: Ø51 mm
• Mil yatak iç çapı: Ø100 mm
• Mil motoru gücü: 18,5 / 15 kW
Taret:
• Takım istasyonu sayısı: 12 adet
• Takım ölçüsü (Dış çap × Delik çapı): 25 mm × Ø40 mm
• Revolver indeksleme süresi: 0,15 sn/adım
Eksensel Hareketler (Axes):
• Hızlı hareket (X / Z / B): 36 / 36 / - m/dk
• Maksimum strok (X / Z / B): 215 / 700 / - mm
• Besleme motoru gücü (X / Z / B): 3 / 3 / - kW
Punta (Tailstock):
• Punta mili çapı: Ø80 mm
• Punta stroku: 120 mm
• Punta konikliği: MT #4
Yağlama ve Sıvı Kapasiteleri:
• Yağlama tankı: 3 ℓ
• Hidrolik tankı: 20 ℓ
• Soğutma sıvısı kapasitesi: 200 ℓ
Güç Gereksinimleri:
• Elektrik güç kaynağı: 35 kVA
Makine Boyutları:
• Yükseklik: 1.915 mm
• Zemin alanı (Boy x En): 3.230 × 1.815 mm
Ağırlık: 5.500 Kgf
