Satılık Takisawa NEX-106 CNC Torna Tezgahı-2011

35.700 $
Ad Number 10166
View Count 2219
Ad Date 07 April 2026
From 2.El Makina Satıcısı
Year 2011
Ödeme Tipi Nakit
Technical Specifications
Video
PDF
Map

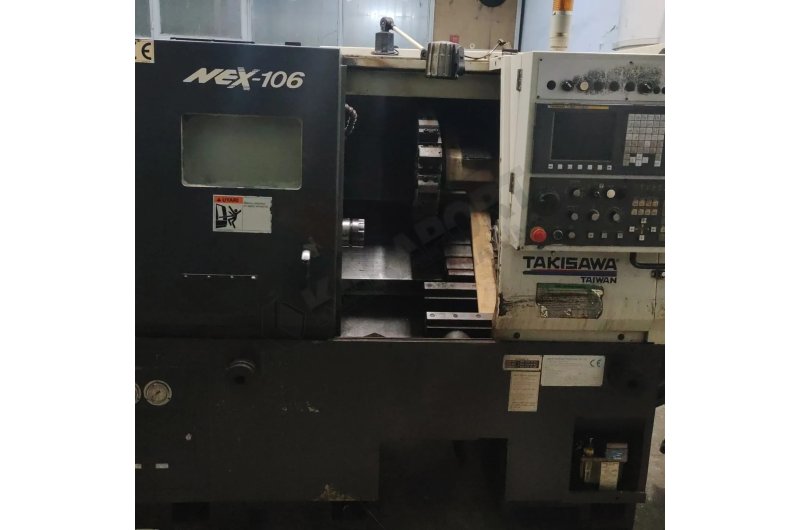

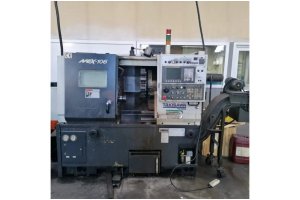

Satılık Takisawa NEX-106 CNC Torna Tezgahı-2011

Yılı:2011

Takisawa NEX-106 CNC Torna Tezgahı Teknik özellikleri

Çevirme çapı (mm) 350

Maksimum tornalama çapı (mm) 240

Maksimum tornalama boyu (mm) 288

Çubuk kapasitesi (mm) 42

X eksen hareketi (mm) 140

Z eksen hareketi (mm) 350

İş mili devri (Rpm) 5000

Taret takım sayısı 12

Takım kesiti (mm) 20×20

Karşı punta MT.4

Punta pinöl çapı (mm) 100

İşmili motoru(Kw) 7,5

Makine yüksekliği (mm) 1720

Yerleşim alanı (mm) 1950×1530

Makine ağırlığı (Kg) 3500

Bütün bakımları yapıldı (2 adet vardır)

Makine Türkiye’dedir.
