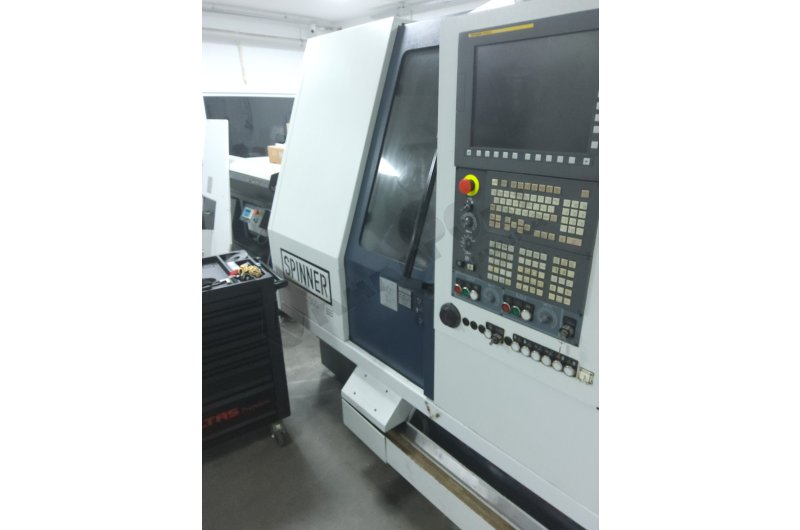

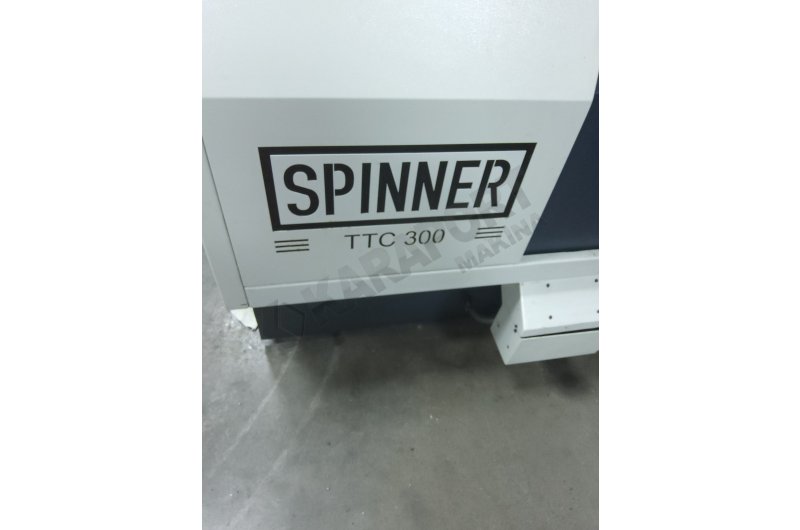

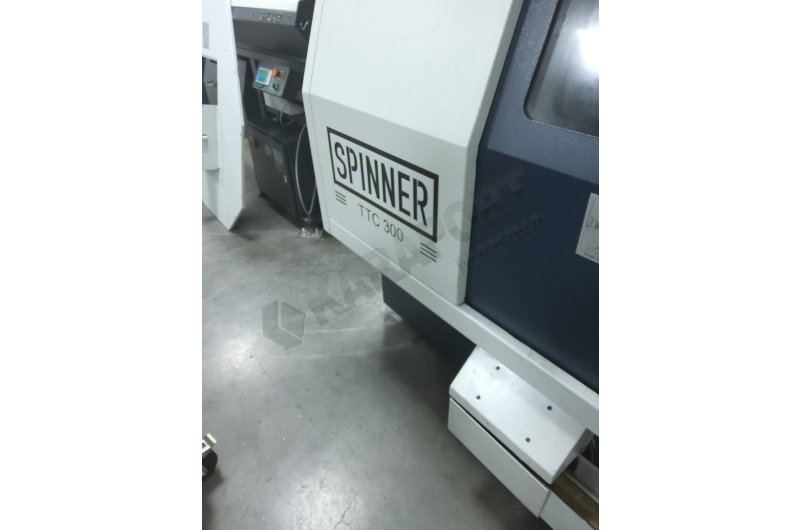

Spinner TTC-300 C Eksen Çift Taret ve Ayna CNC Torna-2017
Spinner TTC-300 C Eksen Çift Taret ve Ayna CNC Torna-2017
Yılı : 2017
Teknik özellikleri

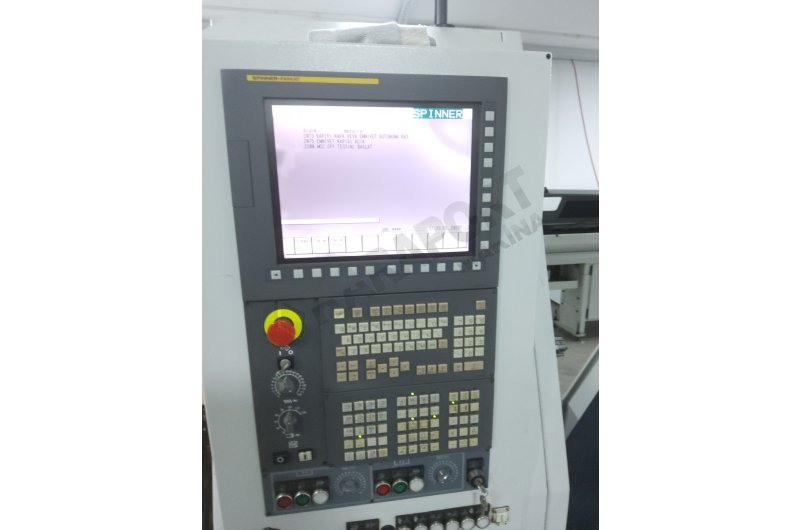

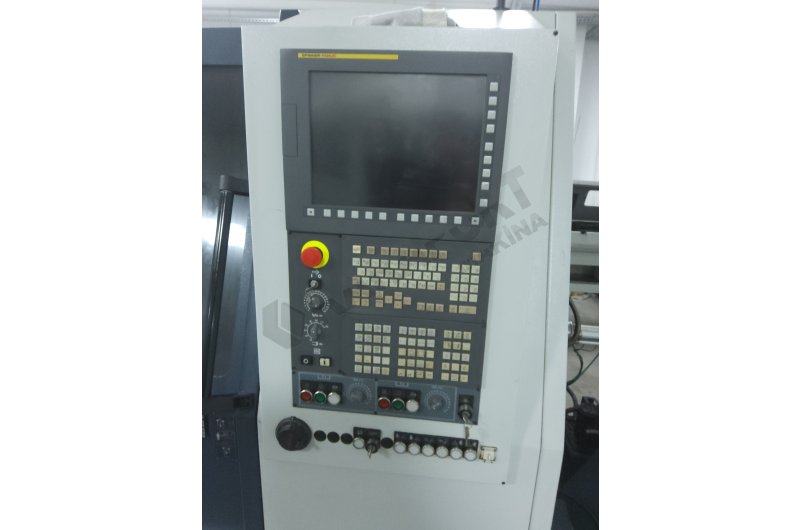

Kontrol Paneli Fanuc
GENEL
Maksimum Cevirme Çapı 400 mm
Maksimum Tornalama Çapı 250 mm
Maksimum Tornalama Boyu 400 mm
Eksen Hareketleri X1 180 / X2 110 / Z 450 mm/d
X/Z Eksenleri Boşta Çalışma Hızı 15 / 24 m/d

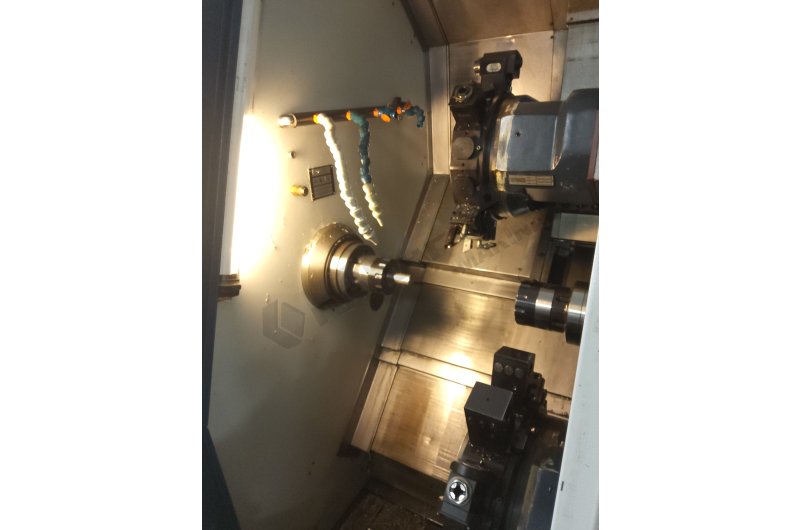

ANA İŞMİLİ
Maksimum İşmili Devri 5000 rpm

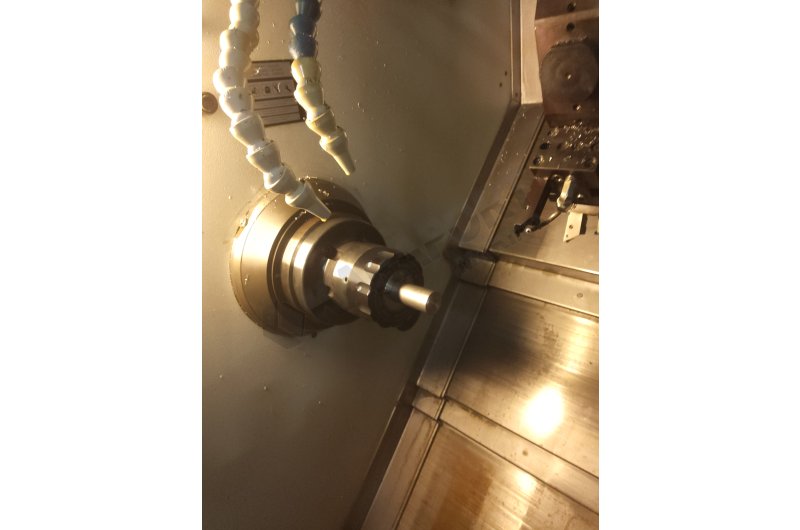

Ayna Çapı 210

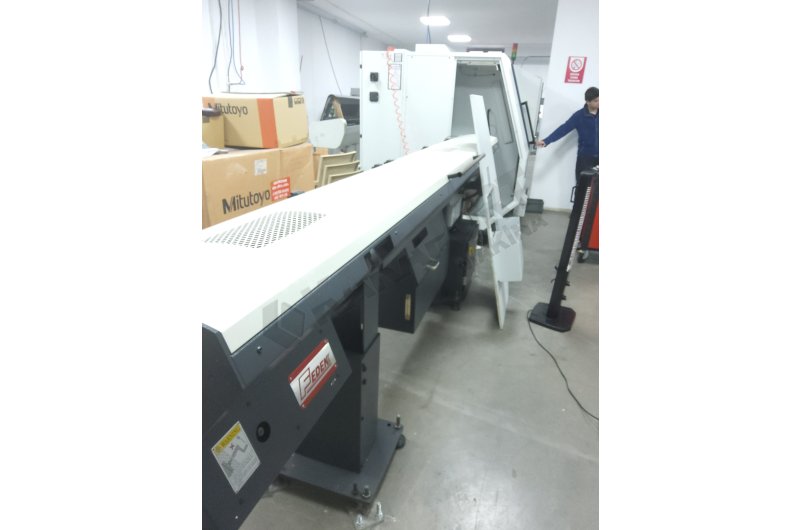

Çubuk İşleme Kapasitesi 52 mm
İşmili Gücü (100%/40%) 22 kW
İşmili Torku (100%/40%) 250 N.m
İKİNCİ İŞMİLİ
Maksimum İşmili Devri 7000 rpm
Ayna Çapı 130
İşmili Gücü (100%/40%) 11 kW
İşmili Torku (100%/40%) 70 N.m

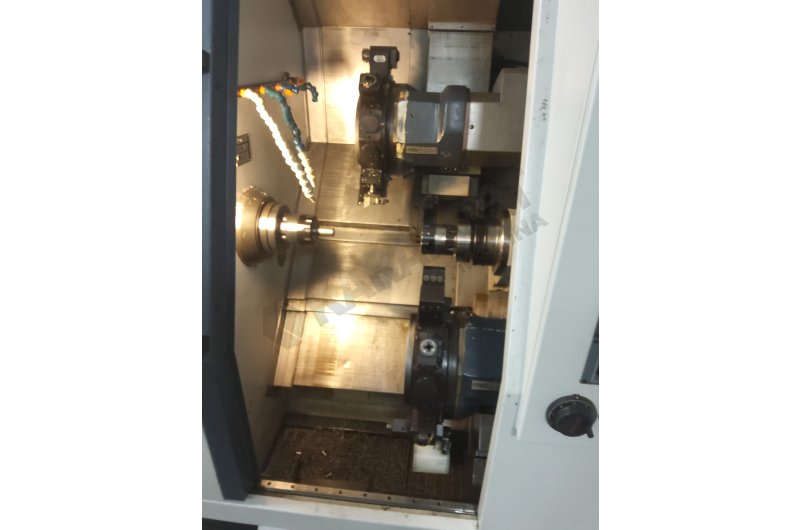

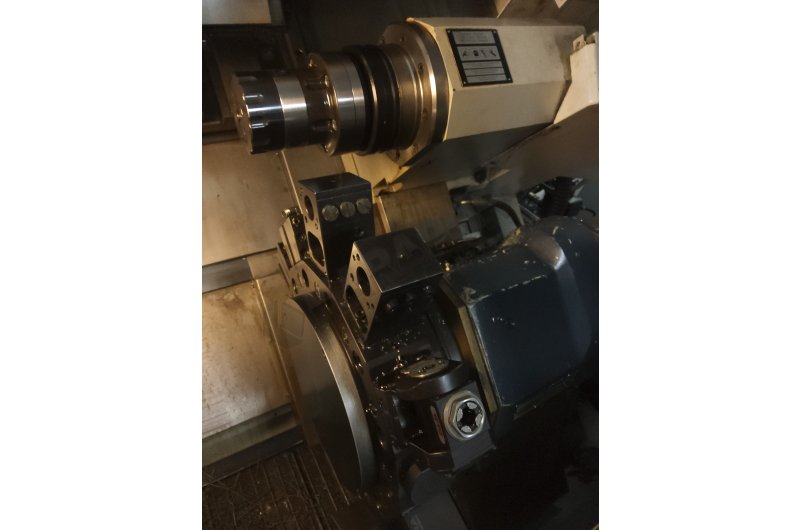

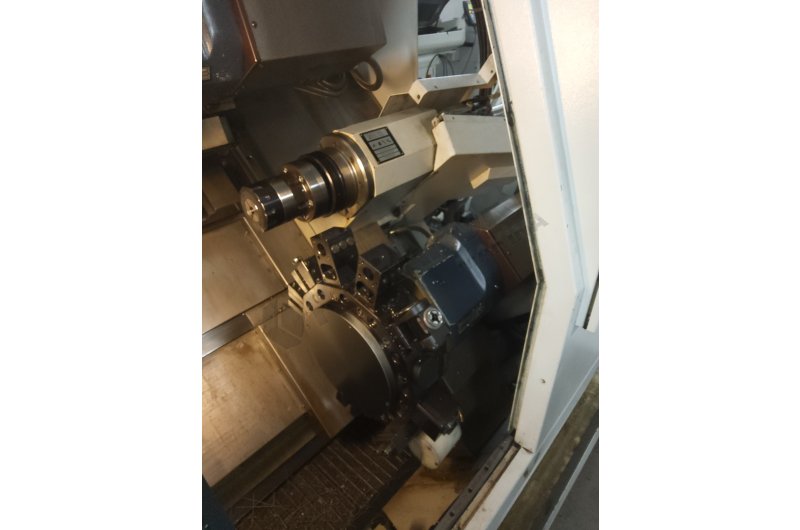

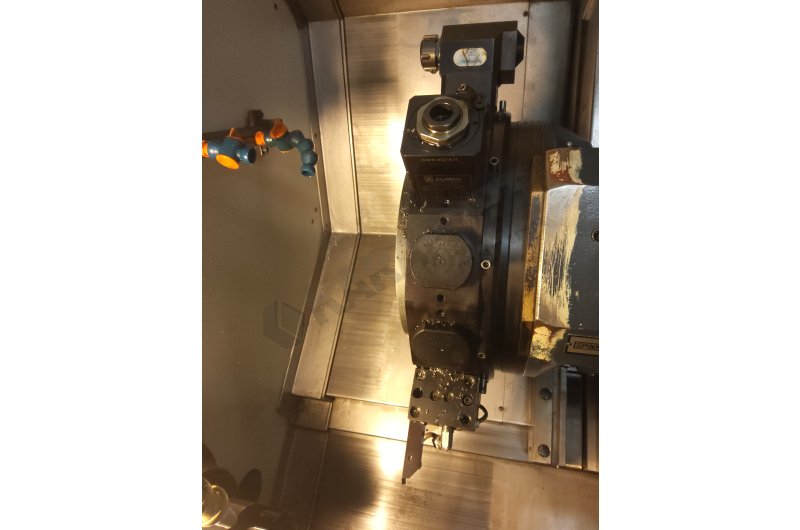

TARET
Takım Sayısı 12 + 12
Tutucu Tipi BMT 45
Canlı Takım Sayısı 12 + 12
Canlı Takım Gücü 3,5 kW
Canlı Takım Torku 38 N.m
Maksimum Canlı Takım Devri 6000 rpm
DİĞER
Ağırlık 4800 kg
Boyutları (LxWxH) 2200x2000x2000 mm
Makine Türkiye’dedir.
