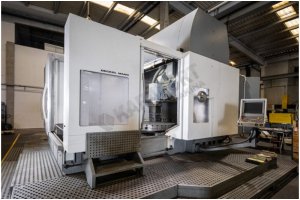

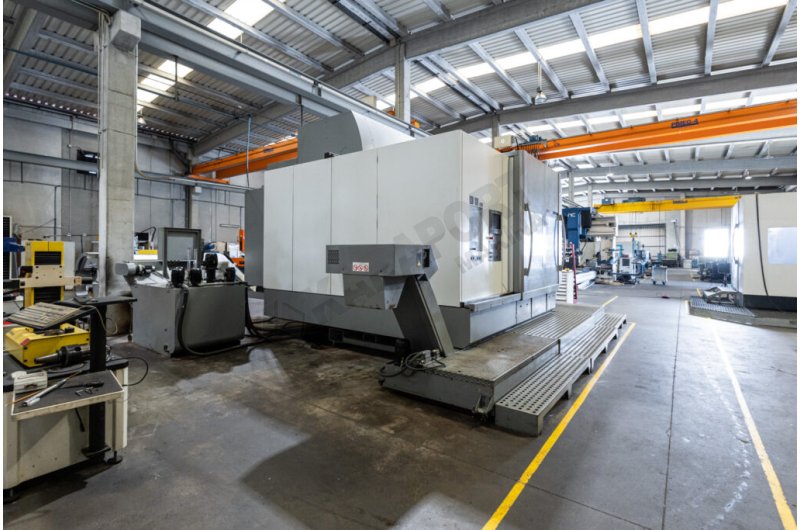

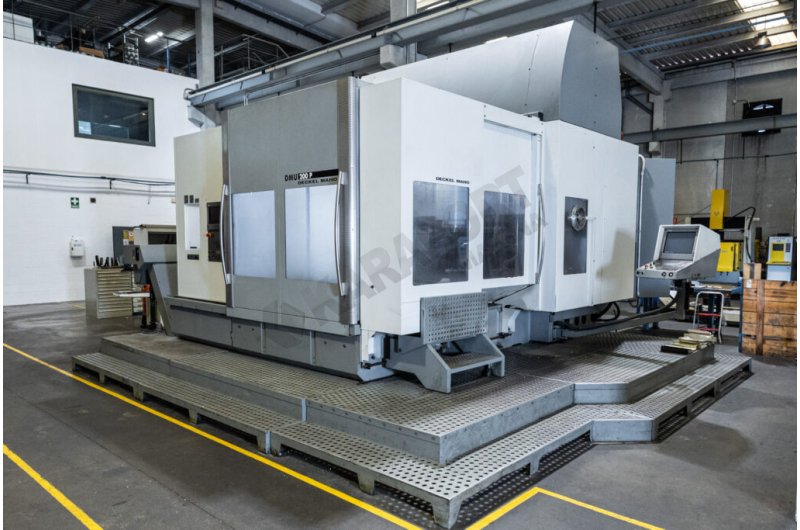

Deckel Maho DMU 200 P 5 Eksen CNC İşleme Merkezi–2001
Deckel Maho DMU 200 P 5 Eksen CNC İşleme Merkezi–2001

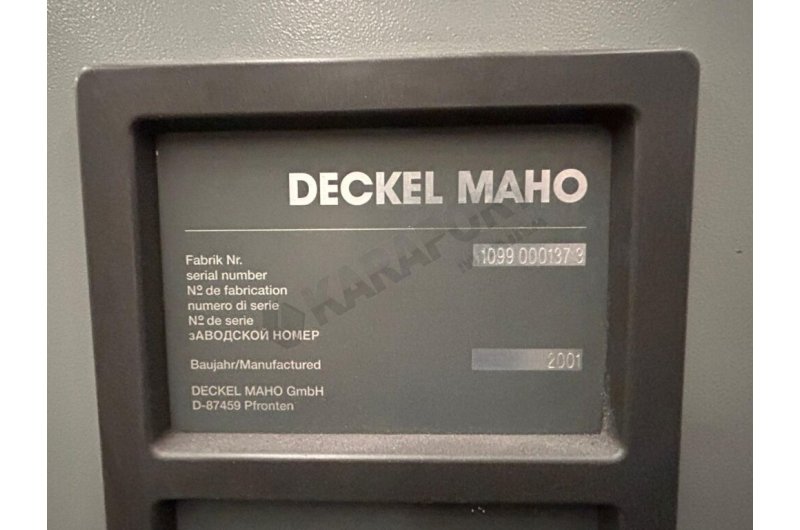

Yıl : 2001
Teslim Şekli : EXW

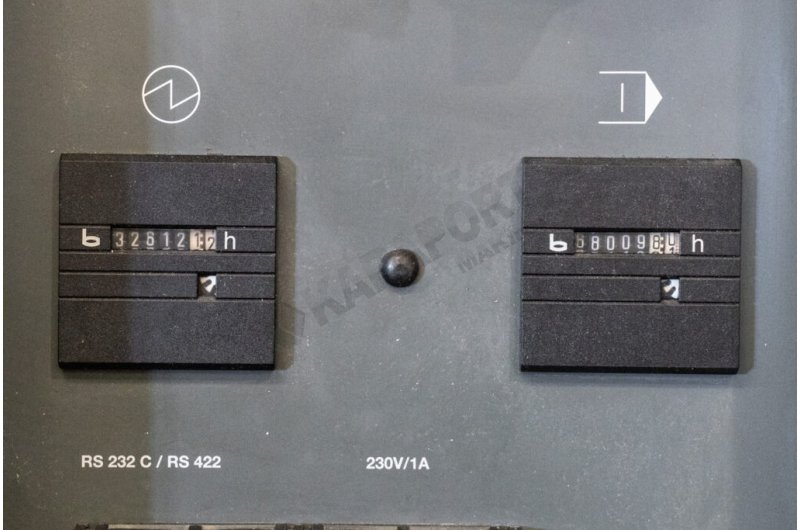

Makine çalışma süreleri
Enerji altında: 132.612 s / Mil çalışma : 68.009 s
Fiyat EXW

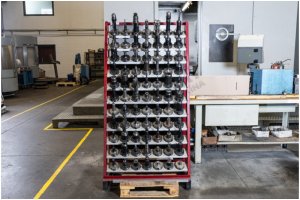

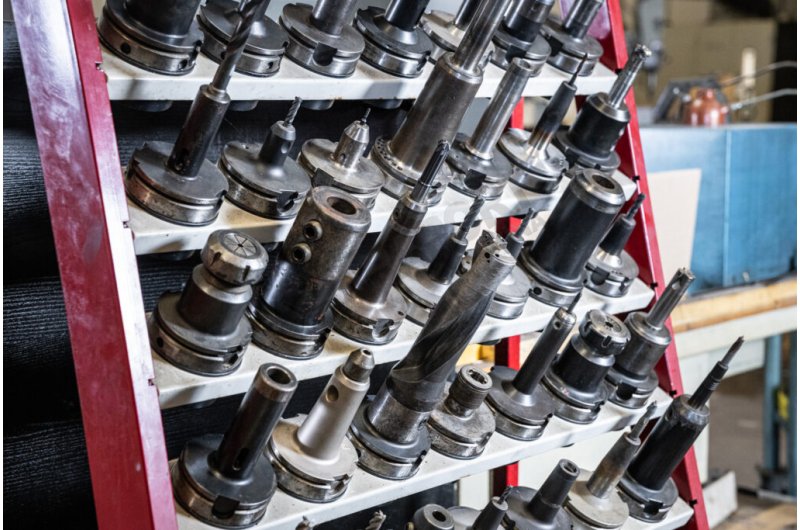

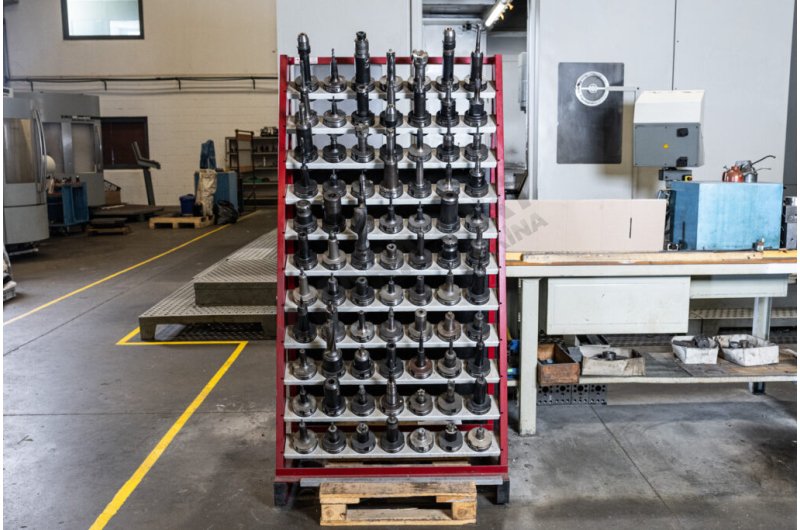

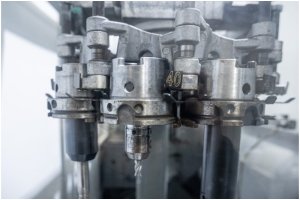

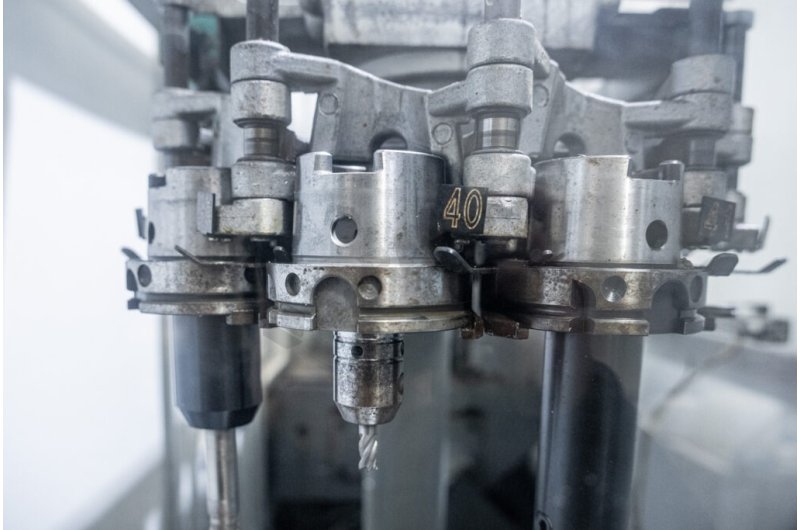

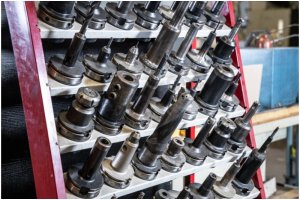

Resimde görünen takım tutucular beraber satılıktır
Teknik özellikleri

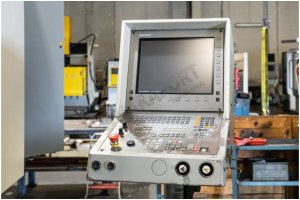

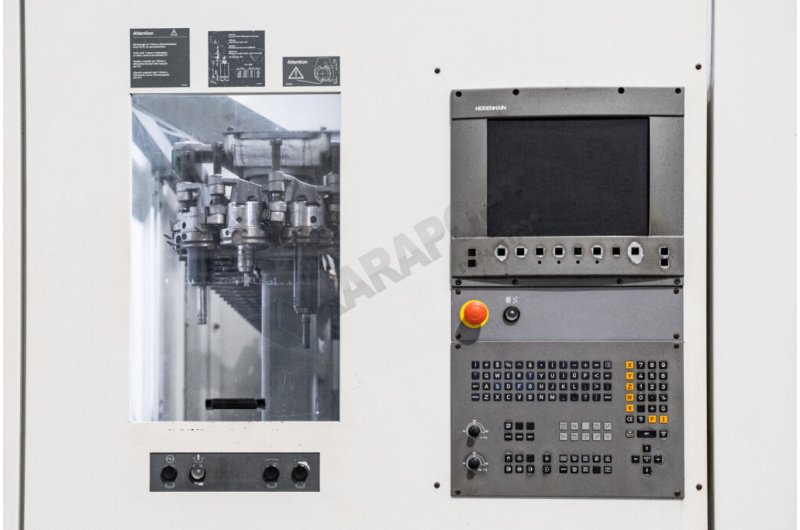

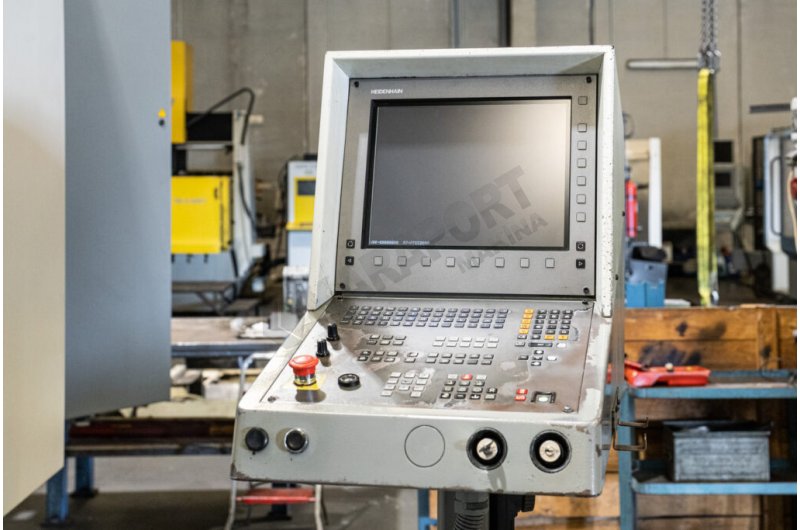

CNC kontrol ünitesi: Heidenhain TNC 430
Eksenler
- X ekseni hareketi (mm): 1800
- Y ekseni hareketi (mm): 2000
- Z ekseni hareketi (mm): 1100
- C ekseni dönüş açısı: 360º (0,001)
- B ekseni dönüş açısı: -7/+187º
- İlerleme hızları (m/dak): 60/40/40
- Hızlı hareket (m/dak): 60/40/40

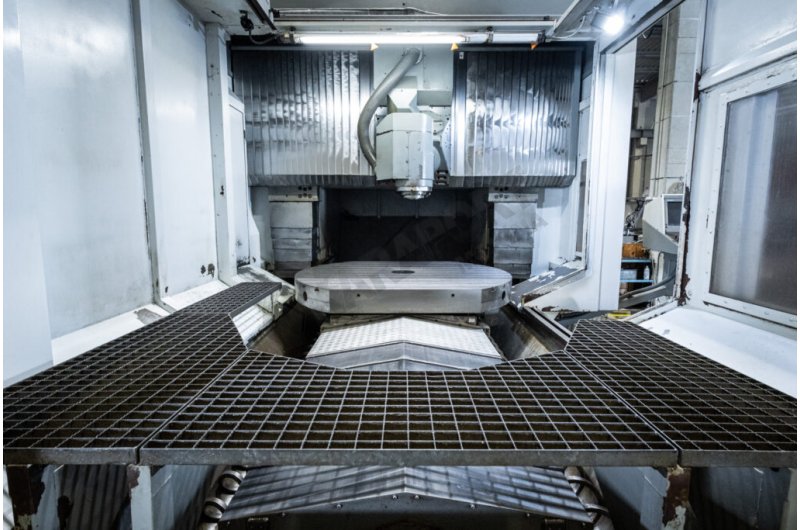

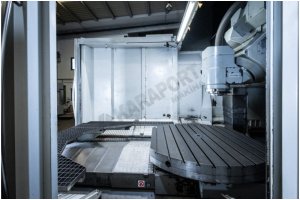

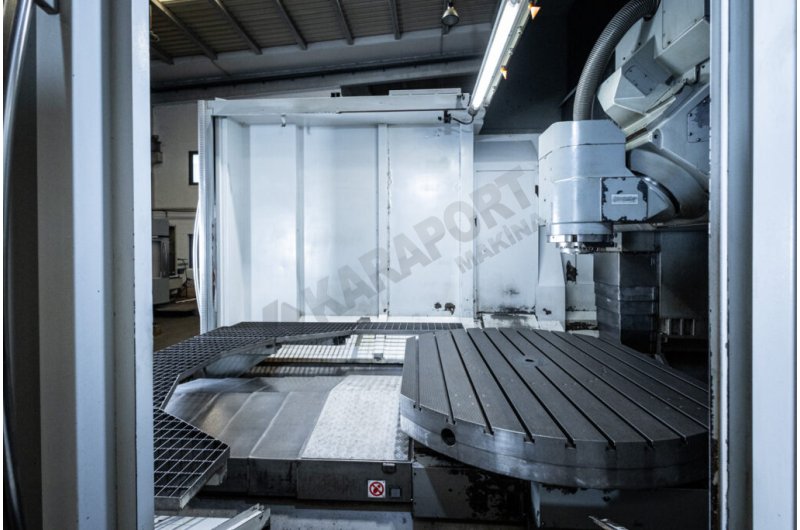

Freze / Tornalama tablası
- Tabla ölçüleri (mm): Ø1700×1400
- Maksimum iş parçası ağırlığı (kg): 5000
- Tabla dönüş hızı (dev/dak): 200

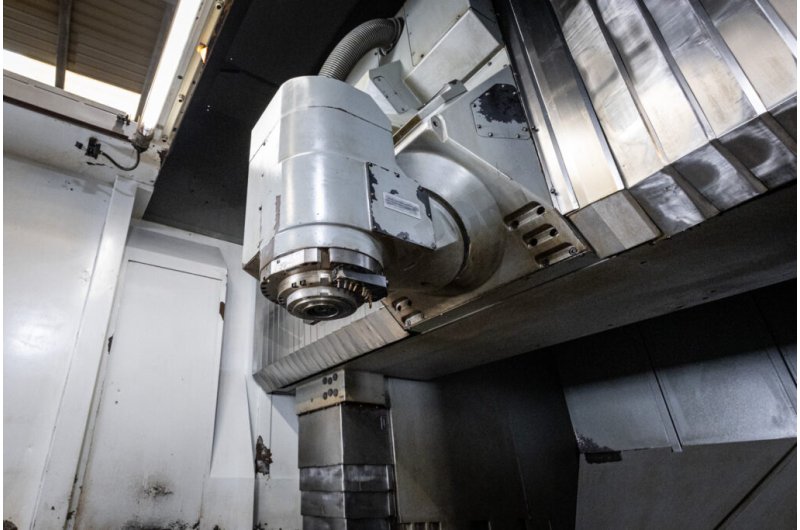

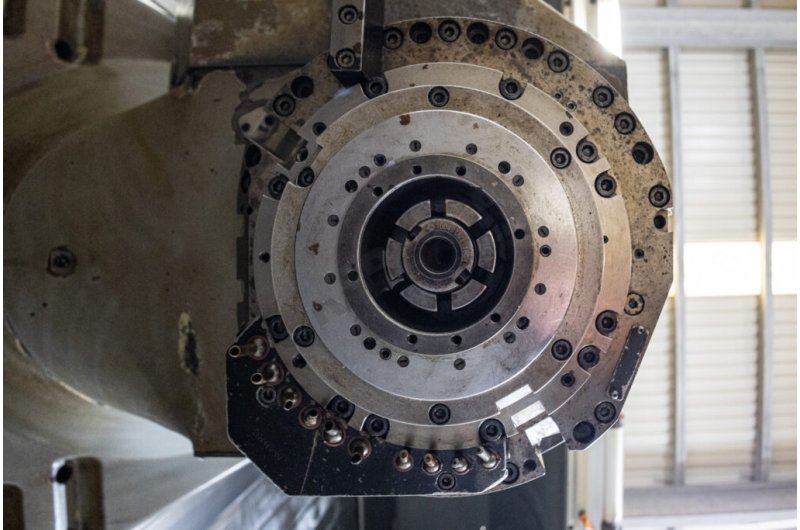

Mil (Spindle)
- Mil hızı (dev/dak): 10000
- Mil tahrik gücü (kW): 44/32 (40%ED/cont)
Mil torku (Nm): 288/187 (40/100%ED)
Soğutma
- Mil merkezi çubuk içinden soğutma: 40
- Tank kapasitesi (lt): 900
Takım sistemi
- Takım tutucu: HSK-A 100
- Takım magazin yuvaları: 60
- Takım değiştirici: Çift kavrayıcı
- Takım değiştirme süresi (s): 13,5
Donanım
- Elektronik el çarkı
- Talaş konveyörü
- Kızılötesi prob
- Dahili soğutma sıvısı beslemesi
- Döner kontrol pencereleri
- Yıkama tabancası
- Çalışma modu 4
- Takım kırılma probu
Temel makine ölçüleri / ağırlık
- Uzunluk (mm): 7900
- Genişlik (mm): 8800
- Yükseklik (mm): 4200
