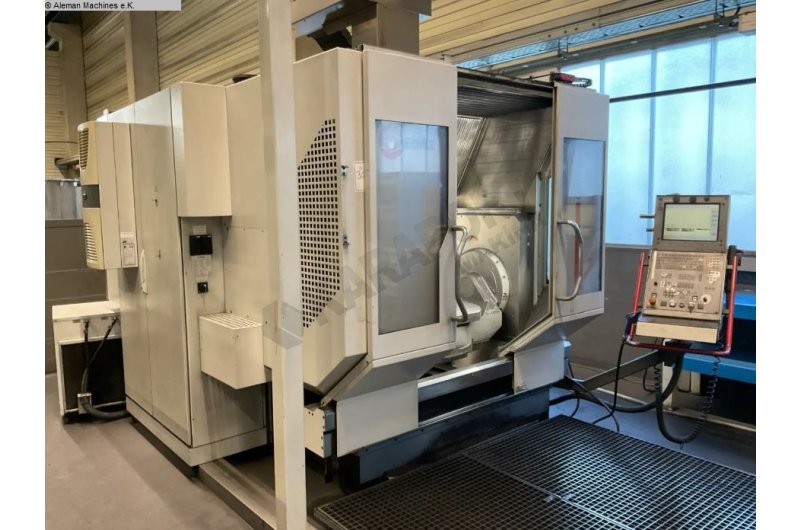

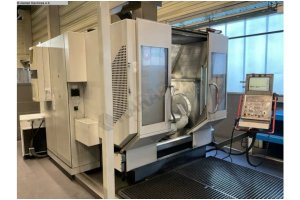

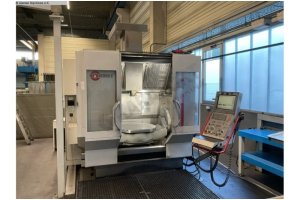

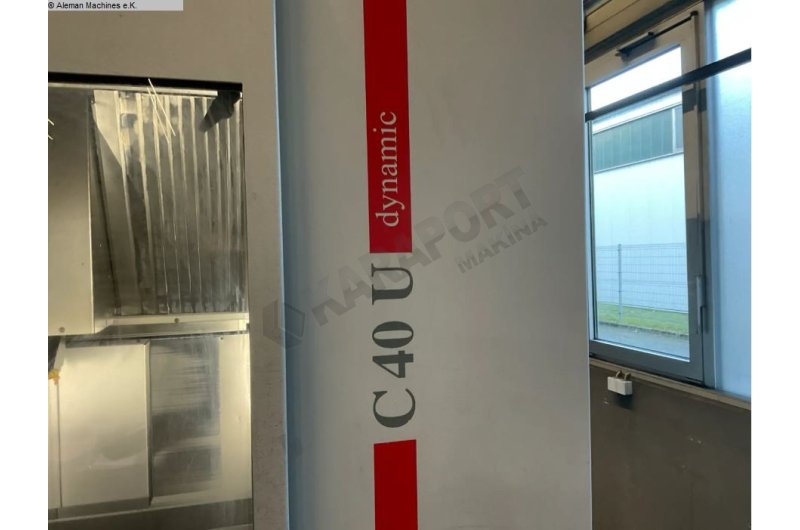

Hermle C 40U Dynamic 5 Eksen CNC İşleme Merkezi-2006
Hermle C 40U Dynamic 5 Eksen CNC İşleme Merkezi-2006
Yıl: 2006
Durum: Hemen teslim
Menşei: Almanya

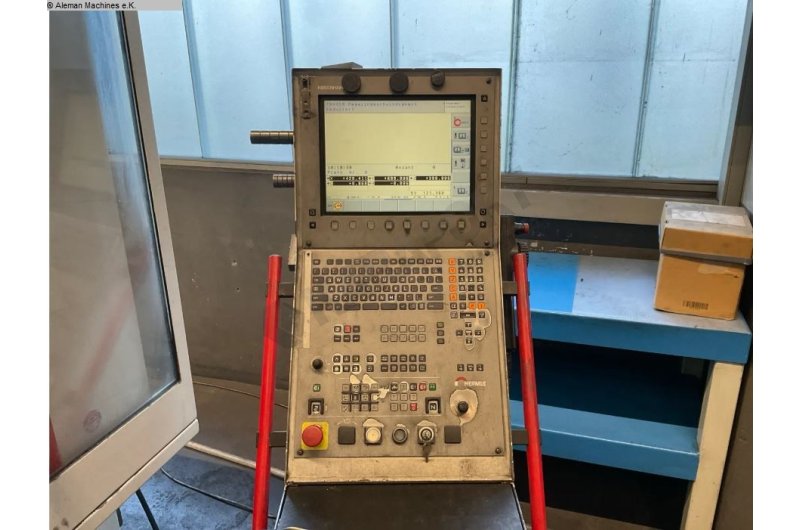

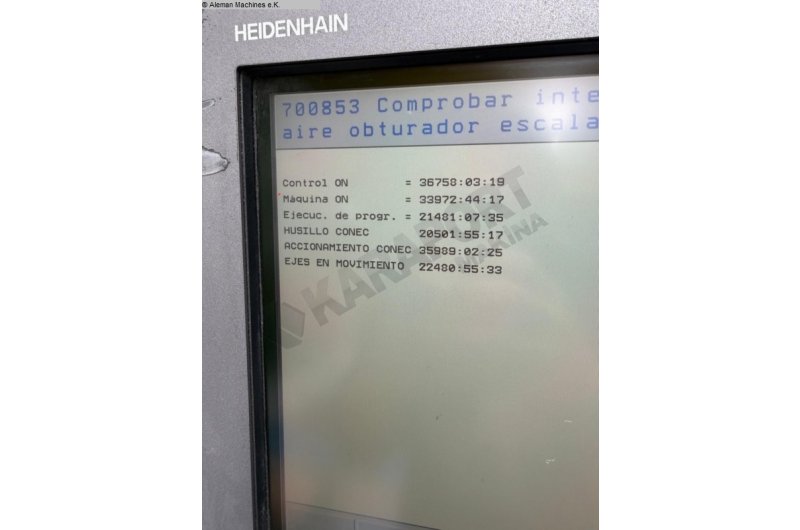

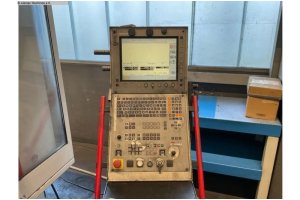

Kontrol Ünitesi: HEIDENHAIN iTNC
Teslim Şekli: Free Carrier (FCA) – Tır üstü
Öne Çıkan Donanımlar

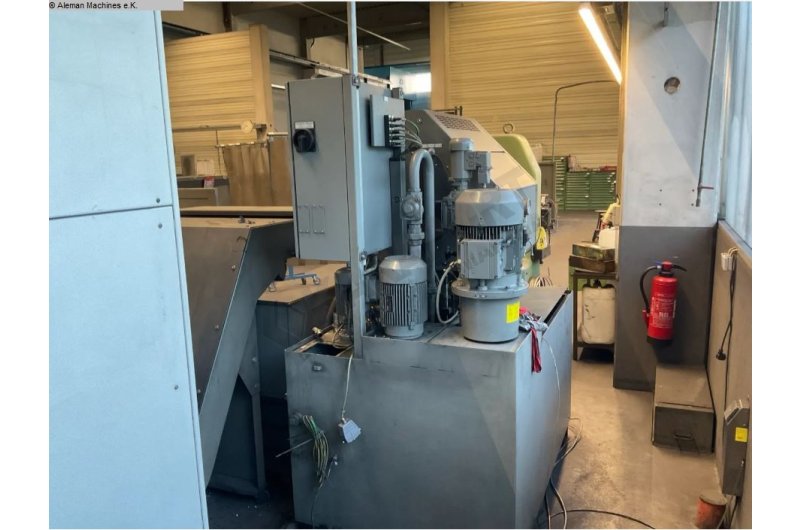

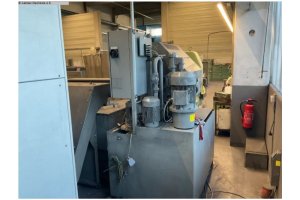

• Kâğıt bant filtre – 200 L tank

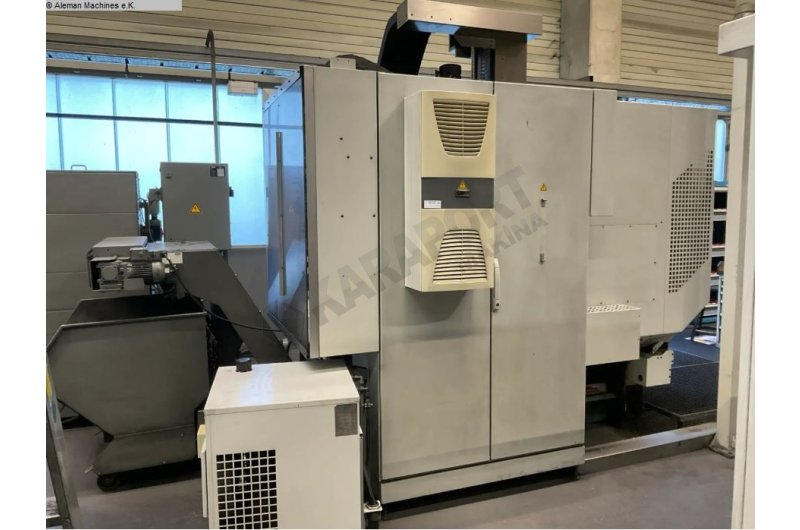

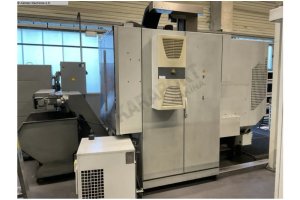

• Aktif kontrol kabini soğutma
• M&H (Heidenhain) infrared prob
• Blum lazer takım ölçüm sistemi
• Talaş konveyörü
• 2 bar / 40 L/dk temizleme tabancası
• 3D Quick Set
• Elektronik el çarkı (HR-410)
Teknik Özellikleri
Özellik Değer Birim
X ekseni hareketi 850 mm
Y ekseni hareketi 700 mm
Z ekseni hareketi 500 mm
Kontrol HEIDENHAIN iTNC —
Döner tabla çapı 800 mm
C ekseni 0.001° (±360°) °
B ekseni +25 / -110° °
İş mili devri 18.000 rpm
Konik tipi SK40 DIN 69871 —
İş mili gücü 15 kW
Maks. tork 130 Nm
Takım magazini 38 takım
İçten soğutma 80 bar
El çarkı HR-410 —
Toplam güç ihtiyacı 41 kVA
Makine ağırlığı 10.5 ton
