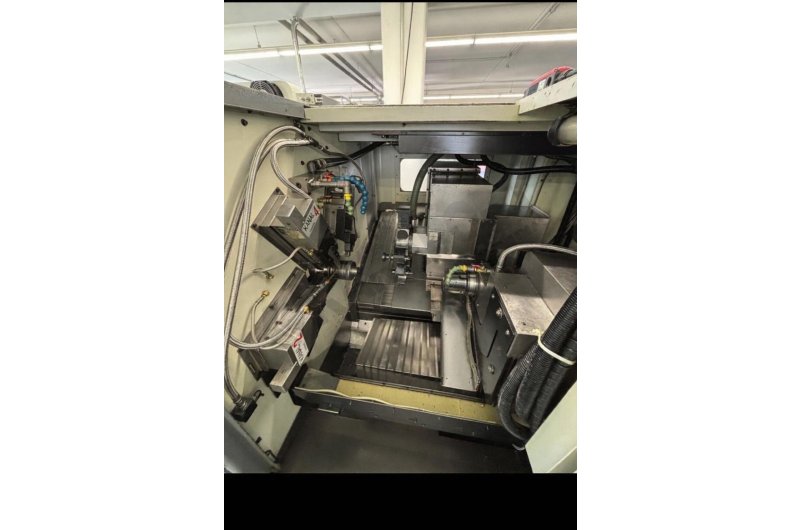

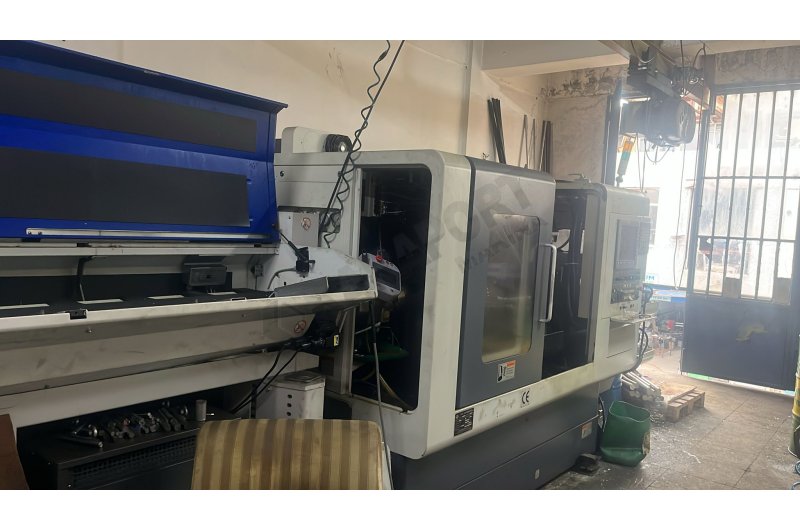

Lico LND-42D CNC Otomat Tezgahı ve Çubuk Sürücü-2012
Lico LND-42D CNC Otomat Tezgahı ve Çubuk Sürücü-2012
Yılı : 2012
Makine Türkiye’dedir
Teknik özellikleri
Kapasiteler
• Bar kapasitesi (iç geçiş): Ø42 mm
• Maksimum tornalama uzunluğu: 450 mm
Ana Mil (Spindle)
• Pens tipi: F48
• Mil burnu: A2-5
• Güçlü ayna tipi: 3-çeneli 6" (Ø45)
• HAINBUCH pens tipi: 42
• Mil motor gücü: 9 / 13 kW (1:1 oranında)
• Maksimum mil devri: 5000 rpm
Karşı Mil (Counter Spindle)
• Pens tipi: F48 / Maks. 42 mm geçiş / 3-çeneli ayna 6"
• Mil burnu: A2-5
• Motor gücü (1:1): 7 / 10 kW
• Maksimum devir: 5000 rpm
Karşı Mil Arabası (Slide)
• Hareket mesafesi: 450 mm
• Motor gücü: 2.29 kW
Kompound (X/Z) Arabası
• Hareket mesafesi: X: 70 (110) mm / Z: 115 mm
• Motor gücü (1:1.4): 0.5 kW
• Hızlı ilerleme: 15~5 m/dak

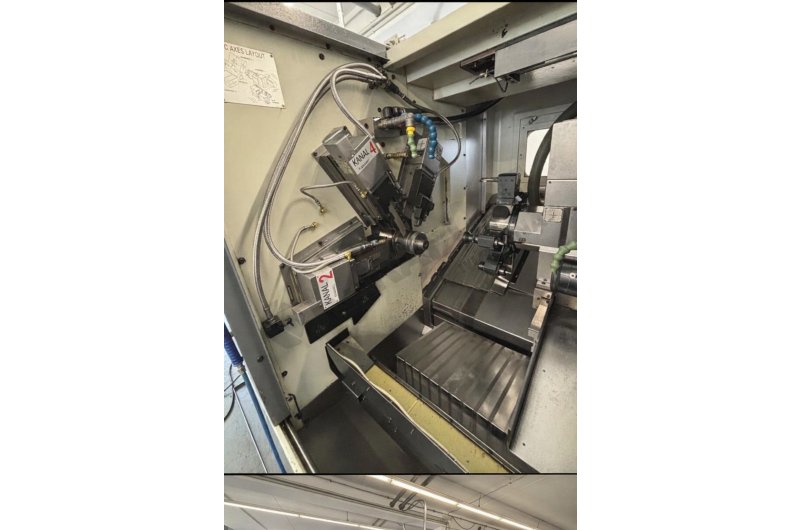

Takım Kulesi (Tool Turret)
• Takım pozisyonu sayısı: 8
• Tornalama takımı kesitleri: 20 mm / 25 mm / VDI-30
• İndeksleme süresi: 0.49 sn / 180° – 1.29 sn
• Güçlü takım motoru (1:1): 3.3 kW
• Maksimum hız: 3000 rpm
Takım Kulesi Arabası
• Hareket mesafesi: X: 175 mm / Z: 475 mm
• Motor gücü: X/Z: 2.29 kW
Y-Ekseni Arabası
• Hareket mesafesi: ±55 mm
• Motor gücü (1:2): 1.48 kW
Makine Boyutları ve Güç Gereksinimleri
• Genel ölçüler (U x G x Y): 3185 x 1890 x 1875 mm
• Makine ağırlığı: 4500 kg
• Hidrolik tank/pompa: 30 ℓ / 2 hp x 30 ℓ (min)
• Soğutma tankı/pompa: 200 ℓ / 1.27 kW + 2.25 kW x(2)
• Yağlama kapasitesi: 8 ℓ, 15 cc / 15 dk
• Toplam güç gereksinimi: 30 kVA
