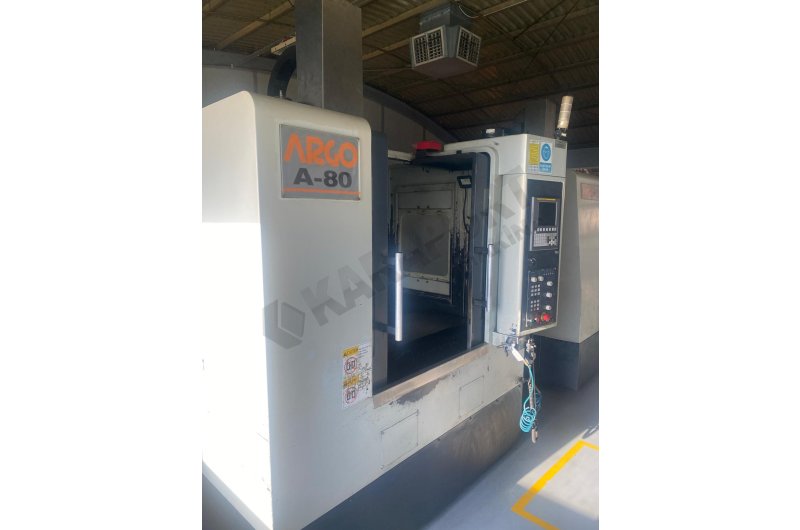

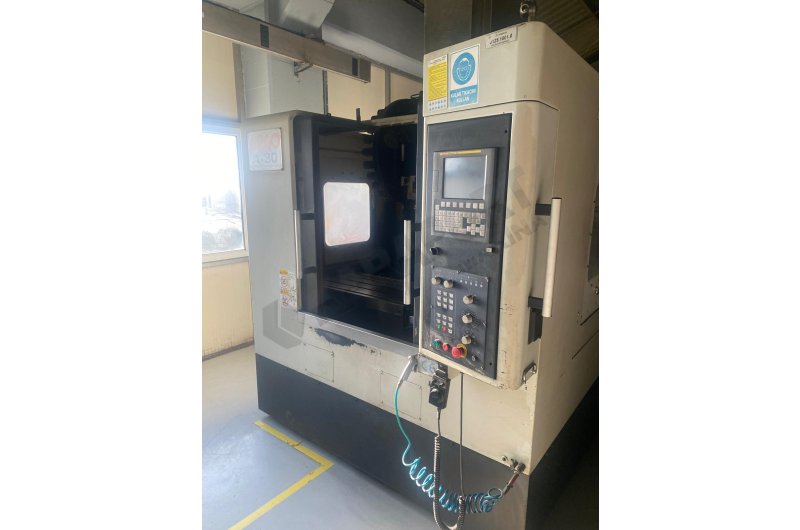

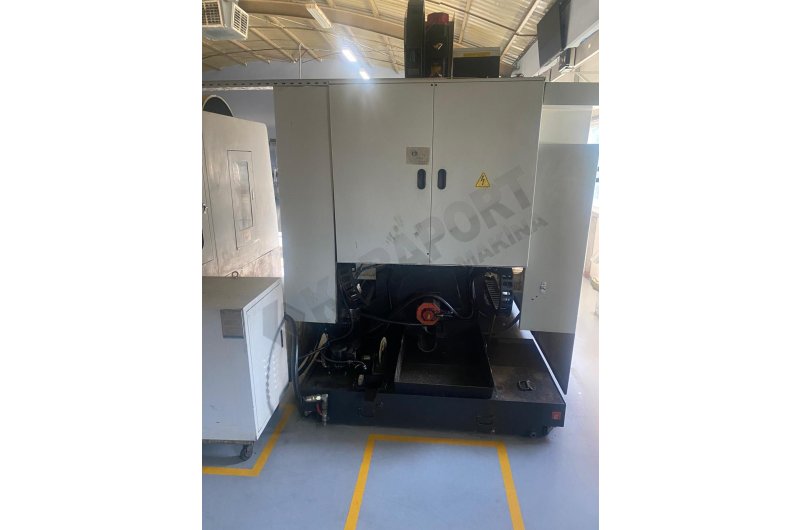

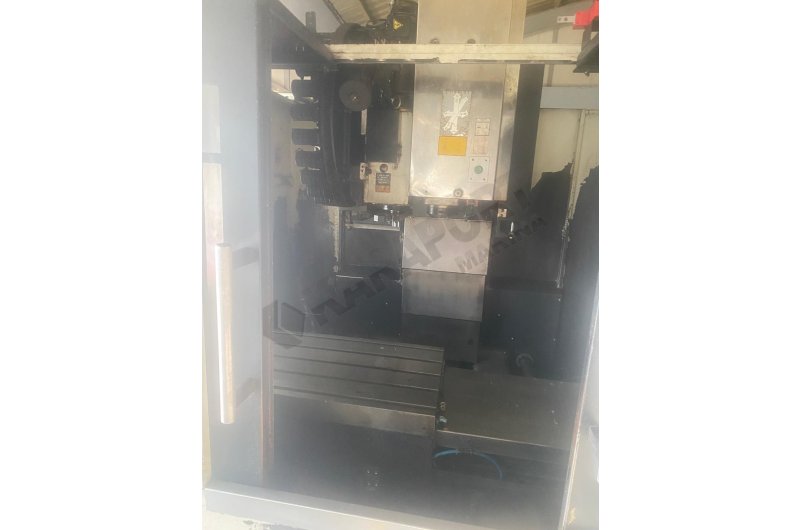

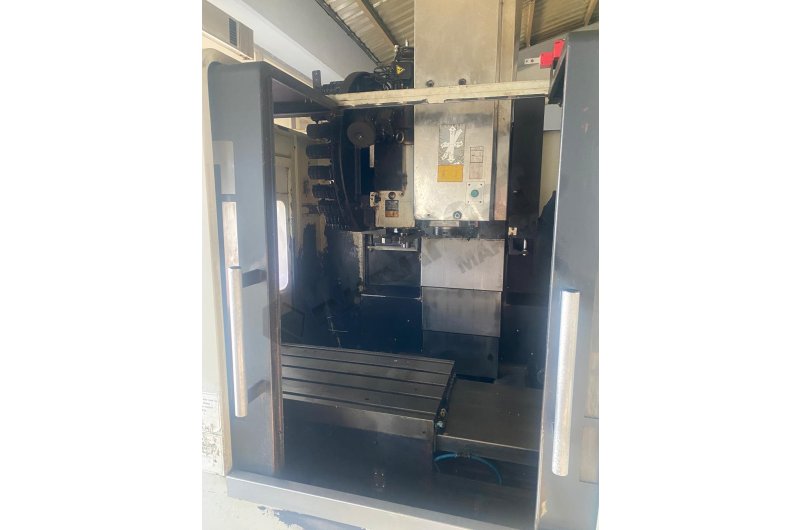

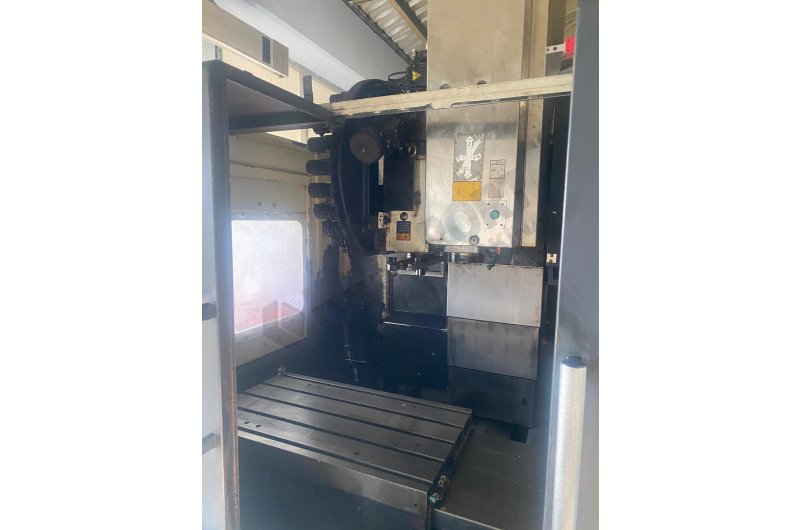

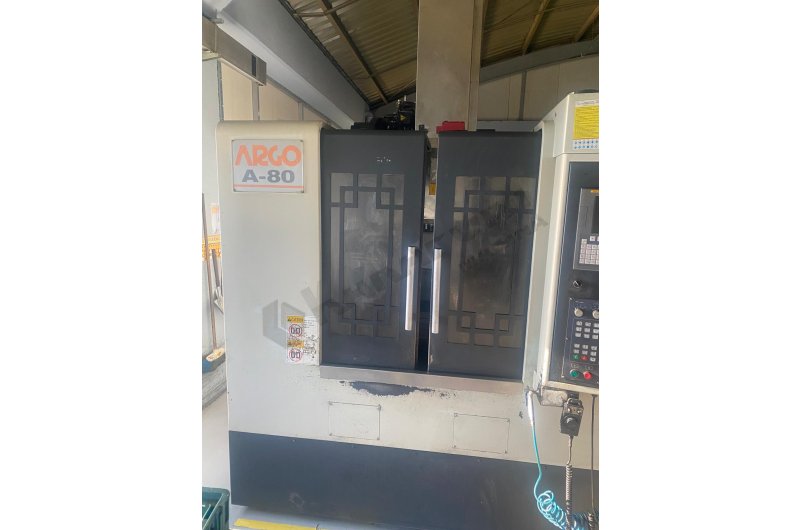

Argo A-80 Divüzörlü CNC Dik İşleme Merkezi-2007
Argo A-80 Divüzörlü CNC Dik İşleme Merkezi-2007
Yılı:2007
Teknik özellikleri

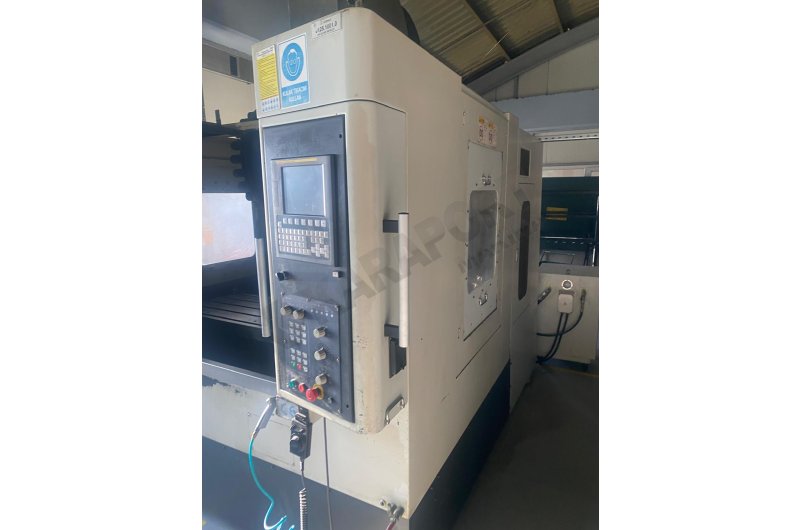

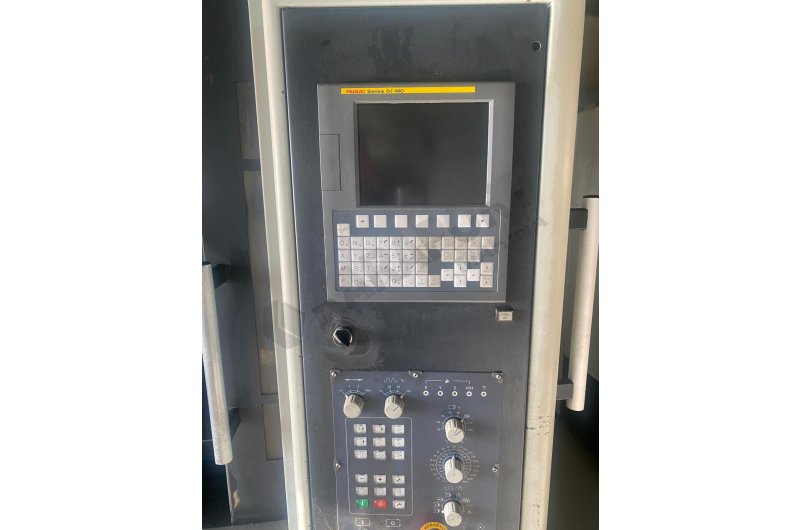

Kontrol Fanuc Oi-MC
Tabla Ölçüsü 800x400 mm
Max. İş Parçası Ağırlığı 400 kg
X Eksen Hareketi 700 mm
Y Eksen Hareketi 420 mm
Z Eksen Hareketi 380 mm
Seri Hareket Hızları (X / Y / Z) 60 m / dak
Kesme Hareket Hızı 15 m / dak
Magazin Sayısı 24 Ad.
Maksimum Takım Çapı 80 Ø mm
Maksimum Takım Ağırlığı 6 kg
Maksimum Takım Boyu 250 mm
İş Mili Koniği BT 40
İş Mili Devri 8.000 Rpm
Kızak Yapısı Lineer
Makina Uzunluğu 3475 mm
Makina Genişliği 1900 mm
Makina Yüksekliği 2700 mm
Makina Ağırlığı 5.500 kg
4.Eksen Divüzör
Makine Türkiye’dedir.
