Biglia B501 Sm Karşı Aynalı C Eksenli Cnc Torna Ve Çubuk Sürücü

Makina Adı : Biglia B501 SM Karşı Aynalı C Eksenli CNC Torna ve Çubuk Sürücü

Yılı : 2002

Ref-3571

Teknik Özellikleri :

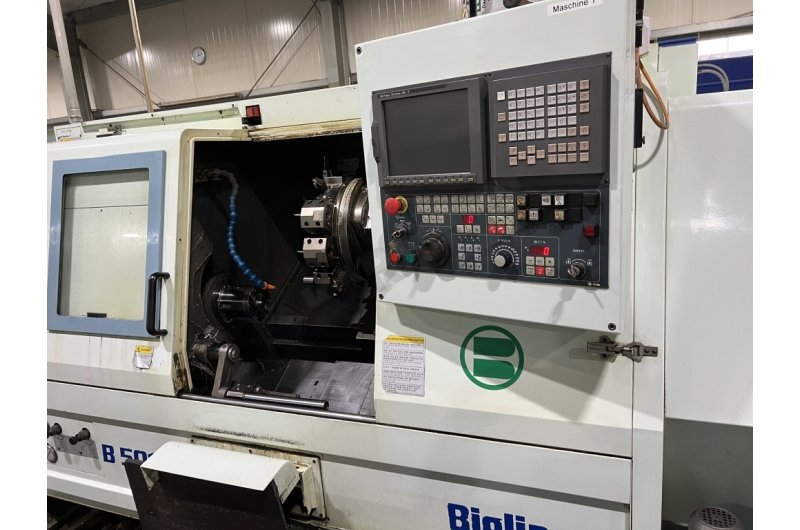

CNC model Fanuc 18i-T

Main spindle power 22 kW

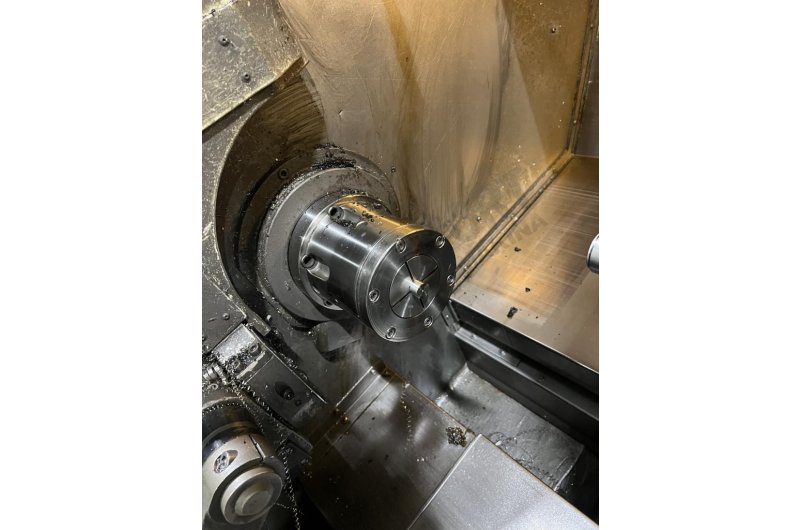

Main spindle chuck diameter 210mm

Main spindle bar passage 65mm

Turnable diameter 250mm

Turnable length 500mm

Number of main spindle revolutions 4000

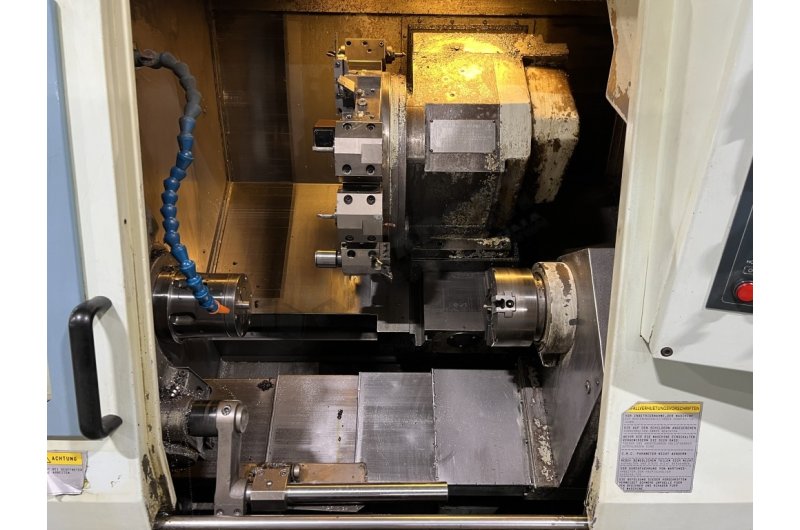

Number of tool places in first turret 12

Number Motorized (C Axez) on turret 12

X axis stroke turret 215mm

Stroke Z Axis turret 510mm

XYZ linear axes rapid feeds 24 m/min

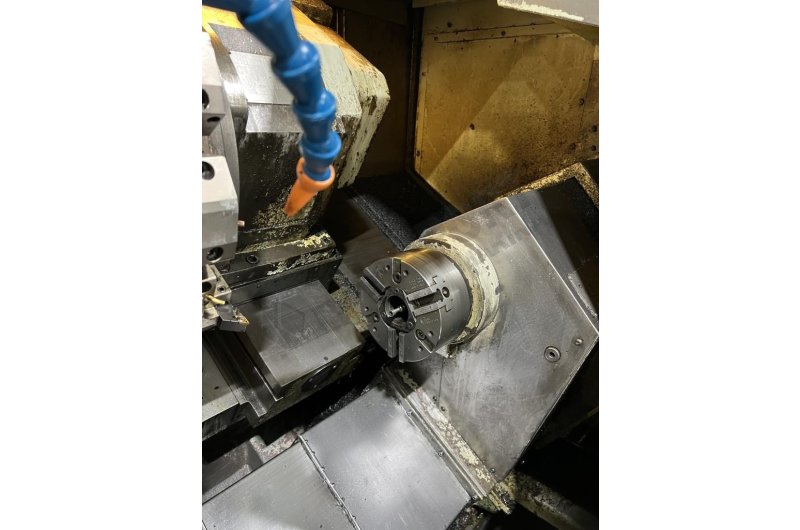

Counter spindle yes

Number of revolutions of the counter spindle 4000

Power against spindle 3.7 kW

Bar passage 43mm

Counter spindle Z travel 515mm

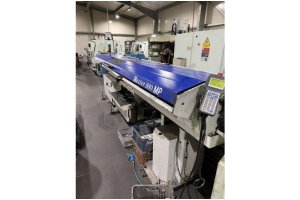

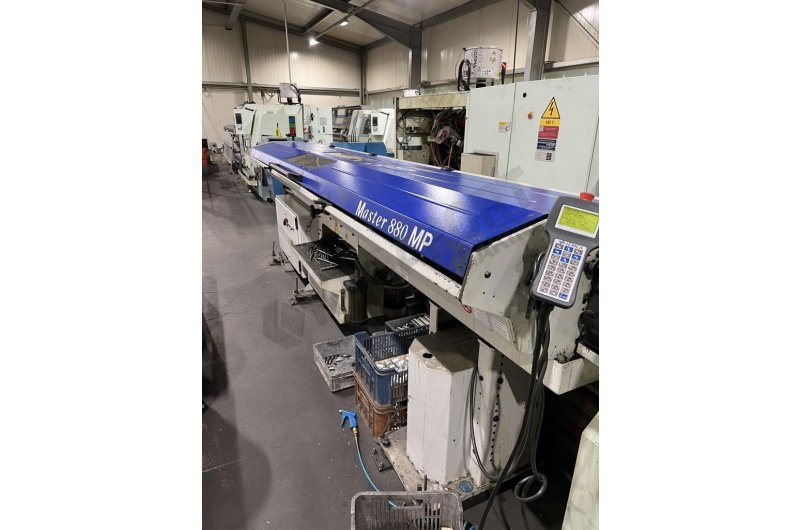

Model and brand of bar feeder Iemca Master 880

Chip conveyor

Preset yes

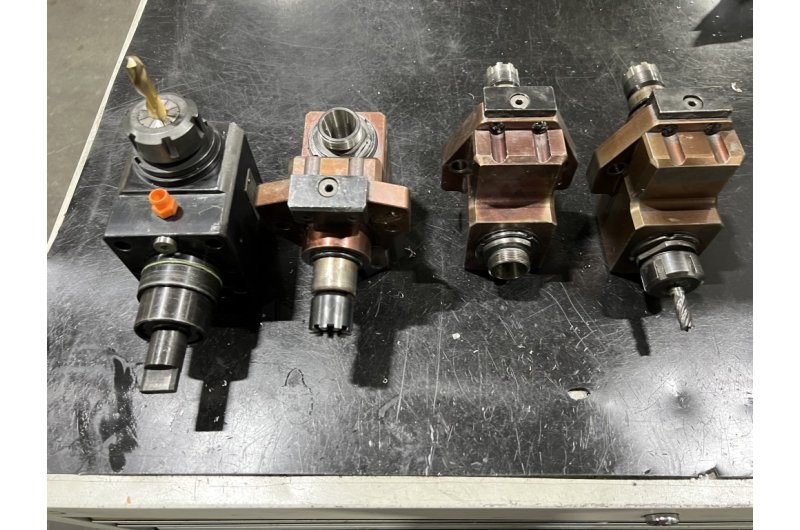

Number of driven tool holders supplied 4

Length 4000mm

Length 1900mm

Height 1800mm

Weight 5000 Kg
