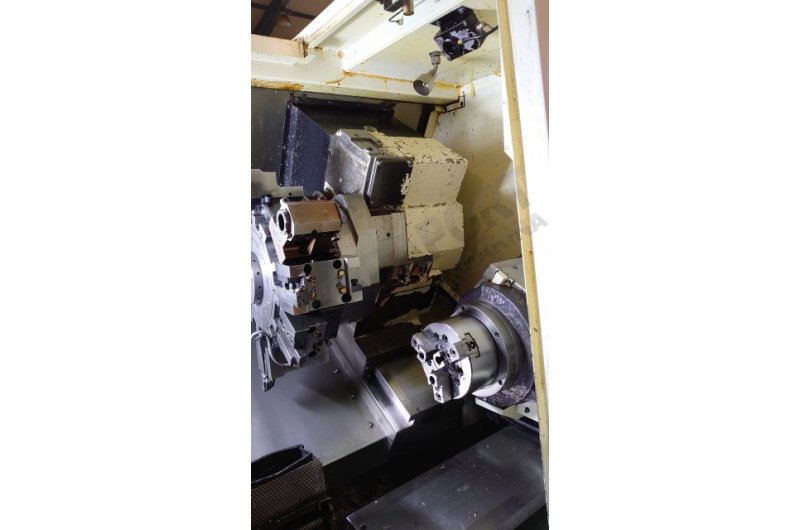

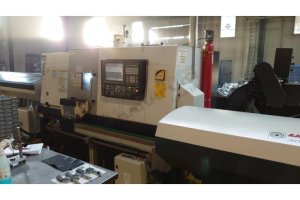

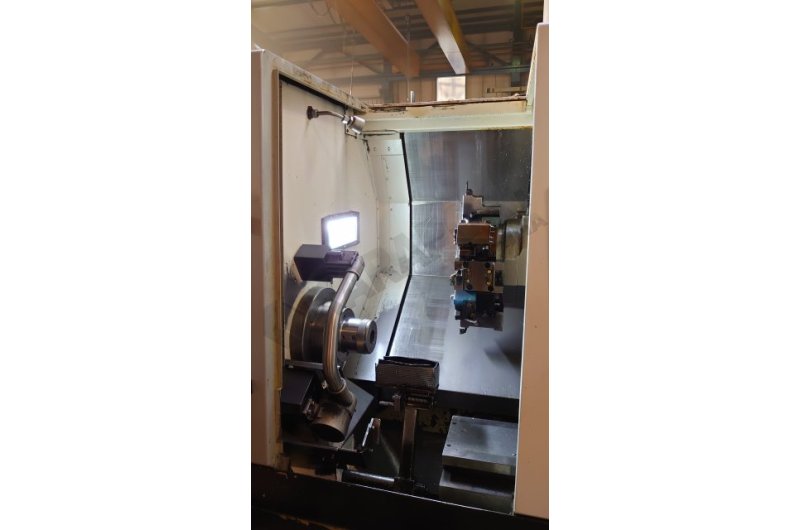

Okuma L300-Mw Çift Spindle C Eksen Cnc Torna Tezgahı-2014

Makina Adı : Okuma L300-MW Çift Spindle C eksen CNC Torna Tezgahı

Yılı : 2014

Ref-3559

TECHNICAL DETAILS

-- Number of spindles : 2

- Number of axes : 4

MAIN SPINDLE

- Spindle nose : A2-8

- Spindle speeds : 3000 [rpm]

- Max. bar diameter : 80 [mm]

- Max. turning diameter : 300 [mm]

- Max. diameter on bench : 520 [mm]

- C axis indexing precision : 0.001 [°]

COUNTER-SPINDLE

- Spindle speeds : 6000 [rpm]

- Max. bar diameter : 53 [mm]

- C axis indexing precision : 0.001 [°]

- Travel : 520 [mm]

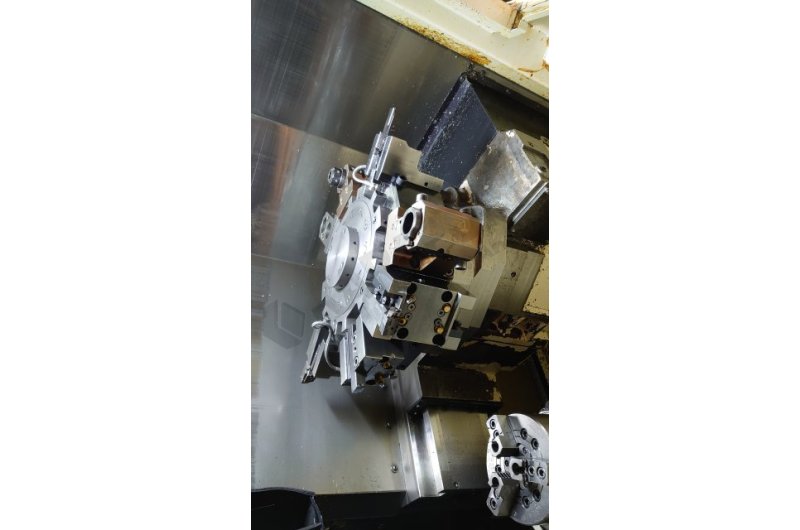

TURRET

- Number of positions : 12

- X/Z stroke : 230 / 460 [mm]

- Live tools speed : 4500 [rpm]

POWER SUPPLY

- Supply voltage : 400 [V]

- Total installed power : 22.5 [kVA]

WEIGHT & DIMENSIONS

- Machine floor space : 3050 x 1860 [mm]

- Machine height : 1.850 [mm]

Fiyat Tır üstü fiyatıdır.
